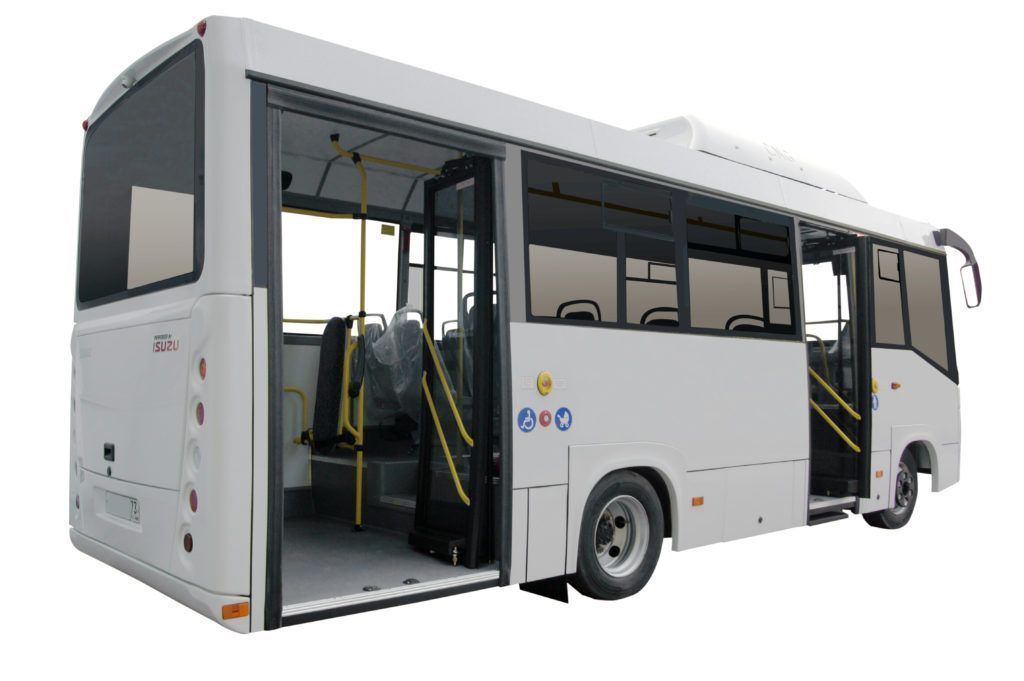

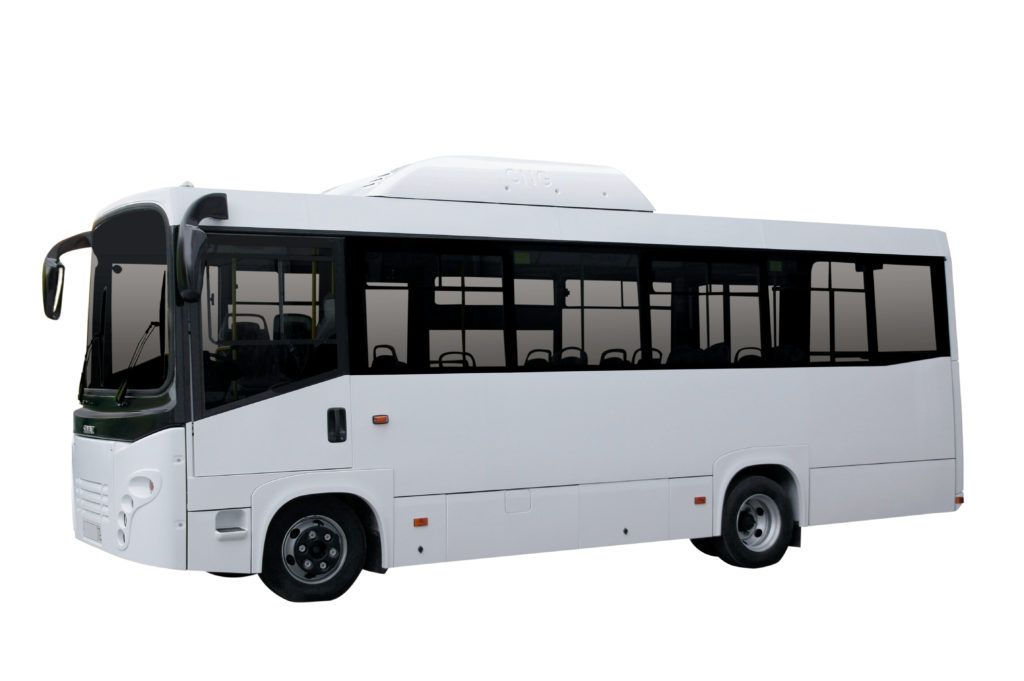

Bus SIMAZ 2258-538, 130 hp
Specification
| Engine power, hp130 | Wheelbase, mm3815 | Height, mm3322 |
| Length, mm7700 | Width, mm2234 | Engine4HV1 |
| Weight, kg7500 |
Description
SIMAZ 2258-538 Bus, 130 HP
Specifications and Description of the Superstructure| Technical Specifications | Middle-Class City Buses "Accessible Environment" with a Low-Floor Rear Platform | |
| Brand | SIMAZ | |
| Model | 2258-0000010-538 | |
| Category/Class | Category M3 Class I | |
| Modification | City | |
| Vehicle layout diagram | Front-engine longitudinal | |
| Number of seats | 13 or 16+2 (folding) + disabled | |
| Passenger capacity | 38 | |
| Body type | Frame, wagon layout | |
| Number of passenger doors | Three plug-and-turn doors. Double-leaf rear doors | |
| Door opening width, mm | Front 700, rear 1000 | |
| Body trim material | Galvanized steel sheet/Fiberglass panels | |
| Interior height, mm | 2000 | |
| Overall dimensions, mm | 7700/2234/3322 | |
| Front/rear track, mm | 1680/1650 | |
| Curb weight, kg | 4850…5550 | |
| Gross weight, kg | 7500 | |
| Front/rear axle load, kg | 2555/4945 | |
| Wheelbase, mm | 3815 | |
| Aggregate characteristics | ||
| Chassis used | ISUZU NPR 82 | |
| Engine | Gas, ISUZU 4HV1, EURO-5 | |
| Number and arrangement of cylinders | 4, in-line | |
| Engine displacement, cm3 | 4570 | |
| Power hp / Torque, N/m | 130 /353 | |
| Gearbox | 6-speed manual (ISUZU MYY6S) | |
| Clutch | Single-disc, dry | |
| Front suspension | Dependent, leaf spring, with hydraulic telescopic shock absorbers, with anti-roll bar | |
| Rear suspension | Dependent, on 4 longitudinal reaction rods with pneumatic elastic elements, with hydraulic shock absorbers, with anti-roll bar | |
| Steering | With hydraulic booster, "screw-ball nut-rack-sector" | |
| Brake system | Hydraulic, dual-circuit, with division into circuits by axles, with vacuum booster, with ABS and ESP. Brakes on all wheels - disc | |
| Tires | Pneumatic, radial, tubeless, size 215/75R17.5 | |
| Fuel tank capacity, l | 120 m³ (6 cylinders) | |
| Power supply system | 24V | |
| Heating system | Passenger compartment heating system from an autonomous liquid heater (WEBASTO) of the flow-through type and radiator-type heaters with fans installed in the cabin | |
Basic Equipment
- ERA-GLONASS Emergency Response System
- Power and Heated Rearview Mirrors
- Car Radio with USB
- USB Ports Throughout the Cabin for Charging Mobile Devices
- Reverse Gear Buzzer
- Stop Signal Buttons
- Driver's Seat, Sprung or Air Suspension
- Steering Column with Tilt and Reach Adjustment
- Webasto Pre-Start Heater
- Corporate Color Paint (Not Metallic)
- Motor Brake
- ABS, ESP
- Front and Rear Axle Anti-Roll Bars
- Fog lights
- Two sunroofs with 3-dimensional adjustment
- Roof-mounted air conditioning
- Digital tachograph
- Electronic route indicators (information board)
- Luggage racks
- Multimedia system running Android OS (3 interior cameras, rear view camera, 10" monitor)
- Super comfortable passenger seats
- Metallic paintwork
Specifications Bus SIMAZ 2258-538, 130 hp
Equipment Specifications
| Engine power, hp | 130 |
|---|---|
| Wheelbase, mm | 3815 |
| Height, mm | 3322 |
| Length, mm | 7700 |
| Width, mm | 2234 |
| Engine | 4HV1 |
| Weight, kg | 7500 |
