| Payload capacity, kg2000 | Engine power, hp122 | Wheel configuration / Drive formula4x2 |
| Wheelbase, mm3360 | Height, mm2260 | Length, mm5955 |
| Width, mm1960 | Chassis modelEVM100 | Engine power, kW90 |
ABOUT THE CHASSIS
Compact dimensions for transportation and operation. Minimal footprint even with the boom extended.
ABOUT THE BASKET
The basket design features a dielectric adapter to enhance personnel safety.
CONTROLS
The unit is equipped with both manual and remote control panels. The operator can perform all main functions with one hand.
ABOUT THE BOOM
Telescopic boom with a synchronized system. Performs tasks using a dual lifting cylinder, ensuring stability and minimal vibrations during operation.
ABOUT THE OPERATOR'S CAB
The cab is designed with a swivel seat and pedals for maximum operator comfort.
ENHANCED SAFETY
The emergency system is equipped with sensors and mechanisms to ensure the highest level of safety in case of an emergency.

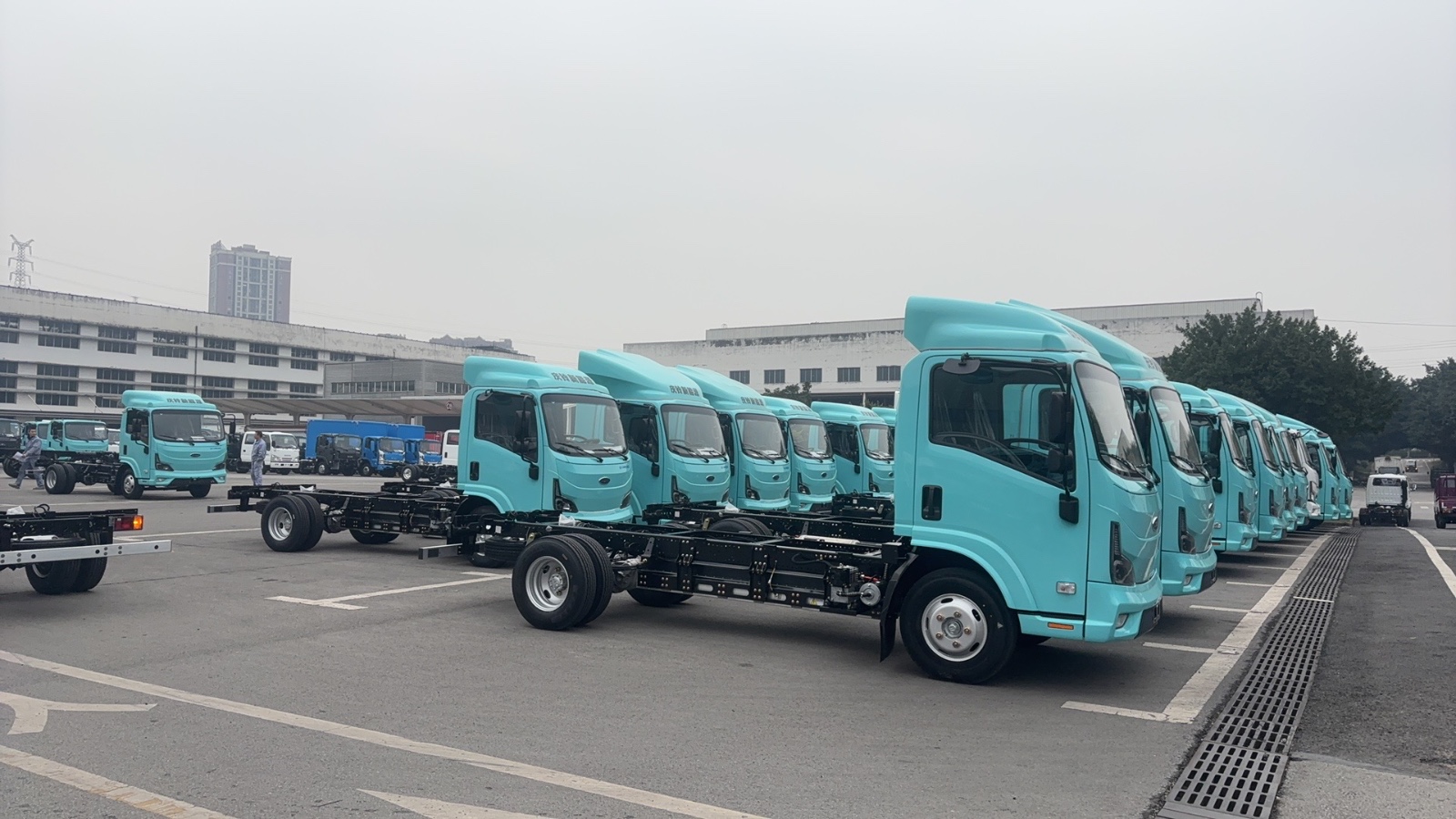

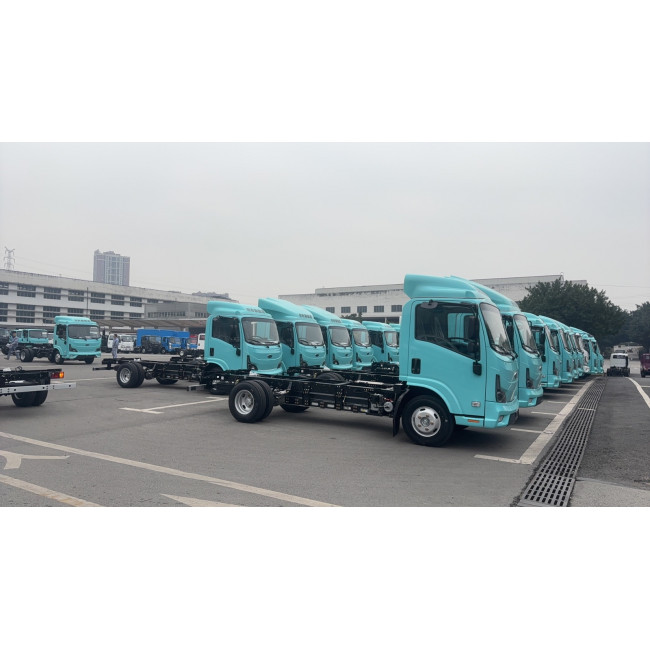

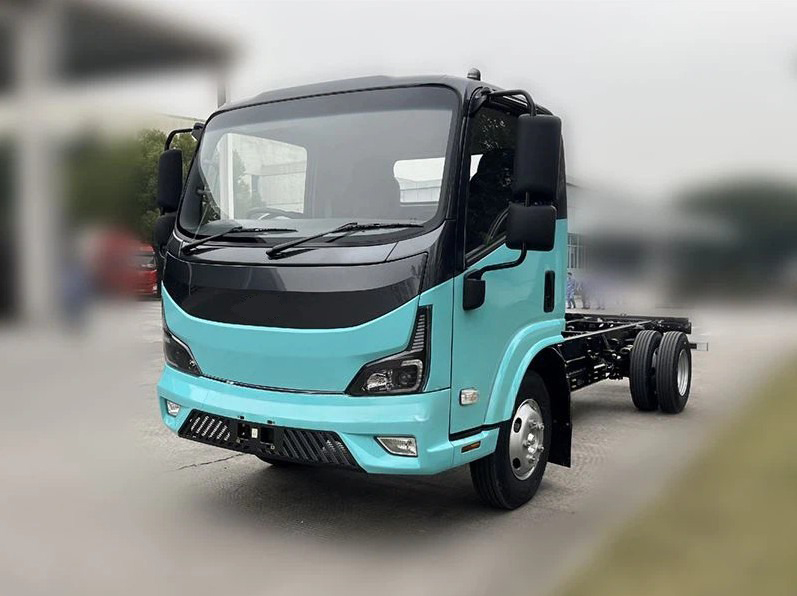

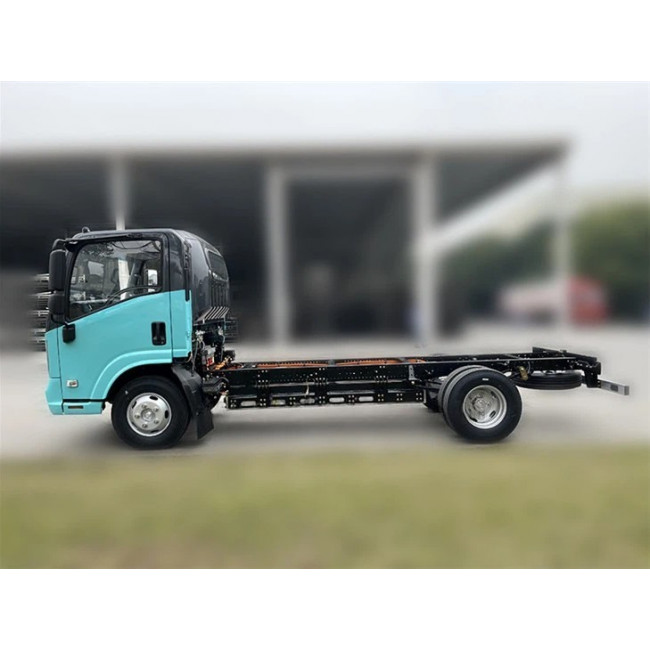

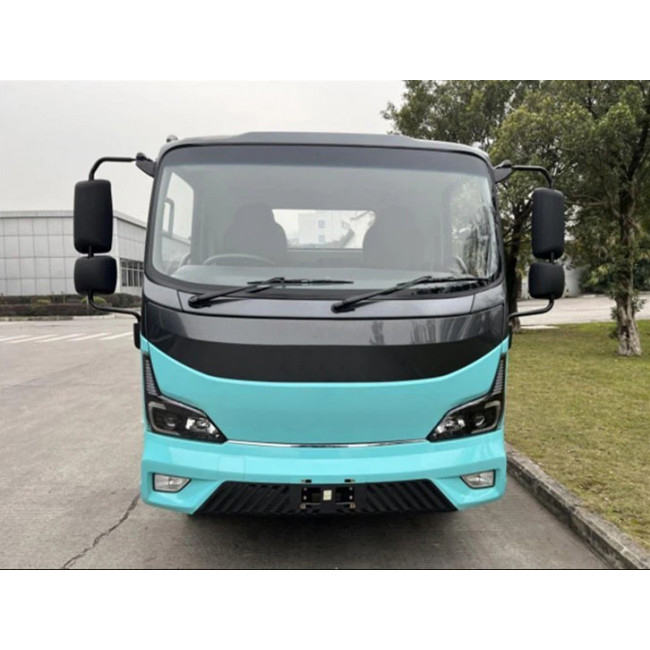

Chassis with electric engine ISUZU EVM100, 4x2, 122 hp, 2 tons
The new generation of the EVM100 electric light truck with right-hand drive was developed taking into account various operating conditions. An all-new chassis and electronic architecture is created, building a modular platform that is easily adapted to various use cases and delivers industry leadership.
Key Features:
- Advanced Electric Drive System: Incorporates a high-tech two-stage gearbox, flat wire motor, and silicon carbide (SiC) controller, delivering superior efficiency and power performance.
- Modular and Flexible Chassis: The new skateboard-type chassis design allows for easy adaptation to various commercial vehicle applications, enhancing versatility and integration.
- Aerodynamic Design: The vehicle's drag coefficient is optimized to 0.38, reducing power consumption and improving energy savings.
- Intelligent Safety Systems: Class L2 autonomous driving technology, including automatic emergency braking, lane keeping assist, and adaptive Cruise control significantly reduces driver fatigue and improves safety.
Technical specifications:
| Dimensions (L x W x H) | 5955 x 1960 x 2260 mm | |
|---|---|---|
| Curb weight | 2290 kg | |
| Gross vehicle weight (GVW) | 4490 kg | |
| Wheelbase | 3360 mm | |
| Drive | Direct drive from Electric Motor | |
| Motor | Motor Model | TZ220XSA10 |
| Motor Type | Permanent Magnet Synchronous Motor | |
| Rated / Peak Power | 90 / 167 kW | |
| Rated / Peak Torque | 214 / 420 N m | |
| Battery | Battery Brand | CATL |
| Battery Type | Lithium iron phosphate | |
| Battery capacity | 100.46 kWh | |
| Specifications | Top speed | 100 km/h |
| Range | 350 km | |
| Charging mode | Fast charging (1.5 h) | |
| Chassis | Front seat | 3 |
| Track front/rear wheels | 1640 / 1525 mm | |
| Front / Rear Suspension | 1145 / 1450 mm | |
| Axle Load | 1805 / 2690 kg | |
| Ascent / Departure Angles | 18° / 17° | |
| Leaf Springs | 3 / 3+2 | |
| Tires | Number of Tires | 7 (including spare) |
| Tire Model | 6.50R16LT 10PR | |
| Standard Equipment | 1 | Power Steering |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tires | |
| Payload capacity, kg | 2000 |
|---|---|
| Engine power, hp | 122 |
| Wheel configuration / Drive formula | 4x2 |
| Wheelbase, mm | 3360 |
| Height, mm | 2260 |
| Length, mm | 5955 |
| Width, mm | 1960 |
| Chassis model | EVM100 |
| Engine power, kW | 90 |
| Front / rear track width, mm | 1640 / 1525 |
| Tires | 6.50R16LT 10PR |
| Weight, kg | 2290 |
-
