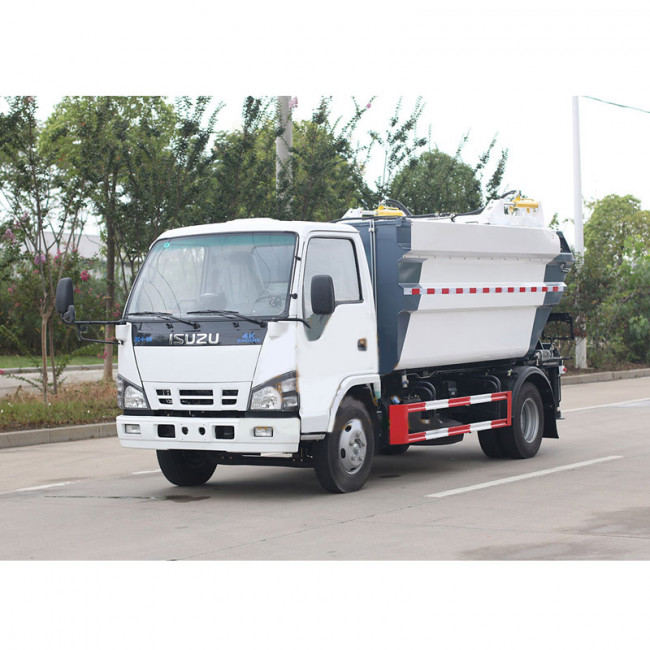

      ISUZU NKR 5 m3 garbage dump truck

      ISUZU NKR 5 m3 garbage dump truck
      ISUZU NKR 5 m3 garbage dump truck
      Product code: 22061
      ISUZU Brand

      Price on request

      Specification
      Engine power, hp120 Volume, m³5 Wheel configuration / Drive formula4х2
      Height, mm3000 Length, mm6000 Width, mm2300
      Engine4HK1CN5HS
      All Attributes
      Share
      Sharing this post will help others discover a cost-effective solution for their business
      Description

      ISUZU NKR 5 m Dump Garbage Truck³

      1. ISUZU NKR chassis with electric doors and windows, air conditioning, sleeper, and ABS; Convenient operation and comfortable driving.

      2. Chassis: Made of 16# low alloy steel and carbon steel plate by full sealed welding, and connected to the chassis beams by 8 groups of connecting plates.It has a beautiful design, thoughtful construction, and is convenient for loading and unloading.

      3. Unloading design: two hydraulic cylinders lift the cart directly for unloading, and the angle between the bottom of the container and the ground is at least 45 degrees, allowing waste to be unloaded independently, depending on its weight.


      SPECIFICATION
      Truck Specification
      Name product Dump truck ISUZU NKR 5m3
      Overall dimensions (L×W×H) Approximately 6000*2300*3000 mm
      Chassis Specification
      Cabin ISUZU NKR cabin with air conditioning
      Drive type 4X2
      Wheelbase 3360 mm
      Fuel type Engine Diesel
      Engine Model 4HK1CN5HS
      Maximum horsepower 120 hp
      Number of cylinders 4
      Emission Standard Euro 5
      Gearbox Type MSB, 5 front and 1 rear
      Tires Size Radial Tires 7.00R16
      Quantity 6 + 1 spare tire
      Upper body specification
      Add-on Loading capacity 5m3
      Waste Bin Material Anti-corrosion steel
      Hydraulic system Multi-way valve and cylinders of a Chinese brand
      Control method Manual Controls
      Lifting angle 45°

      The ISUZU NKR dump truck with a 5 m3 capacity is an effective solution for collecting and transporting municipal solid waste (MSW). It is designed for use in municipal services, construction sites, and industrial facilities.

      The ISUZU NKR dump truck offers several advantages:

      • High load capacity allows for the transportation of large quantities of solid waste at one time.

      • Body volume: 5 m3 Provides sufficient capacity for waste collection and transportation.

      • The ISUZU NKR75PY chassis is highly durable and reliable, ensuring a long service life.

      • The powerful ISUZU 4HK1 engine provides good performance and fuel efficiency.

      • The 5-speed manual transmission allows for easy operation in various conditions.

      • The 4x2 wheel arrangement makes the ISUZU NKR garbage truck maneuverable and stable on the road.

      The ISUZU NKR 5 m3 garbage truck — This is the optimal choice for those looking for a reliable and efficient solution for collecting and transporting solid waste.

      Specifications ISUZU NKR 5 m3 garbage dump truck
      Equipment Specifications
      Engine power, hp 120
      Volume, m³ 5
      Wheel configuration / Drive formula 4х2
      Height, mm 3000
      Length, mm 6000
      Width, mm 2300
      Engine 4HK1CN5HS
      FAQ 0
      • No questions yet
      Ask a question
      By clicking on the "Submit Question" button, you give consent to the processing of personal data.
      ISUZU ELF aerial platform, 4x2, 151 hp, 16 m (500 kg) Product code: 22407 ISUZU ELF aerial platform, 4x2, 151 hp, 16 m (500 kg)

      Price on request

      ISUZU ELF aerial platform, 4x2, 151 hp, 22 m (1000 kg) Product code: 23285 ISUZU ELF aerial platform, 4x2, 151 hp, 22 m (1000 kg)

      Price on request

      ISUZU ELF aerial platform, 130 hp, 4x2, 33 meters Product code: 23242 ISUZU ELF aerial platform, 130 hp, 4x2, 33 meters

      Price on request

      ISUZU ELF aerial platform, 4x2, 126 hp, 30.5 meters Product code: 23241 ISUZU ELF aerial platform, 4x2, 126 hp, 30.5 meters

      Price on request

      ISUZU GIGA aerial platform, 151 hp, 4x2, 45 meters Product code: 23284 ISUZU GIGA aerial platform, 151 hp, 4x2, 45 meters

      Price on request

      Advantages of Working with VELES

      Best Prices – Direct Deliveries Without Intermediaries

      Complete Documentation Package

      Equipment Customization to Meet Customer Requirements

      Manufacturer's Warranty and After-Sales Service

      Wide Range of Models for Various Industries

      Qualified Experts – On-Site Service Support

      Turnkey Business Solutions

      decor
      Featured
      ISUZU ELF garbage truck, 4x2, 120 hp, 5 m3
      ISUZU ELF garbage truck, 4x2, 120 hp, 5 m3
      ISUZU ELF garbage truck, 4x2, 120 hp, 5 m3
      Product code: 23023 ISUZU ELF garbage truck, 4x2, 120 hp, 5 m3

      Price on request

      Garbage truck ISUZU ELF, 4x2, 7 m3, 120 hp
      Garbage truck ISUZU ELF, 4x2, 7 m3, 120 hp
      Garbage truck ISUZU ELF, 4x2, 7 m3, 120 hp
      Garbage truck ISUZU ELF, 4x2, 7 m3, 120 hp
      Garbage truck ISUZU ELF, 4x2, 7 m3, 120 hp
      Garbage truck ISUZU ELF, 4x2, 7 m3, 120 hp
      Product code: 22847 Garbage truck ISUZU ELF, 4x2, 7 m3, 120 hp

      Price on request

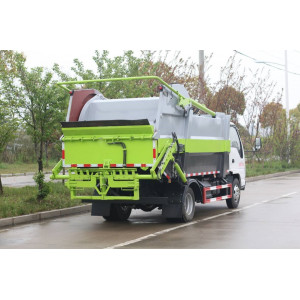

      ISUZU ELF 7.3 m3 garbage truck
