| Engine power, hp300 | Curb weight, kg10350 | Engine displacement, cm³7790 |
| Wheel configuration / Drive formula8х4 | Wheelbase, mm1850+4575+1370 | Height, mm3040 |
| Length, mm11595 | Width, mm2540 | Engine6HK1-TCG60 |
ABOUT THE CHASSIS
Compact dimensions for transportation and operation. Minimal footprint even with the boom extended.
ABOUT THE BASKET
The basket design features a dielectric adapter to enhance personnel safety.
CONTROLS
The unit is equipped with both manual and remote control panels. The operator can perform all main functions with one hand.
ABOUT THE BOOM
Telescopic boom with a synchronized system. Performs tasks using a dual lifting cylinder, ensuring stability and minimal vibrations during operation.
ABOUT THE OPERATOR'S CAB
The cab is designed with a swivel seat and pedals for maximum operator comfort.
ENHANCED SAFETY
The emergency system is equipped with sensors and mechanisms to ensure the highest level of safety in case of an emergency.

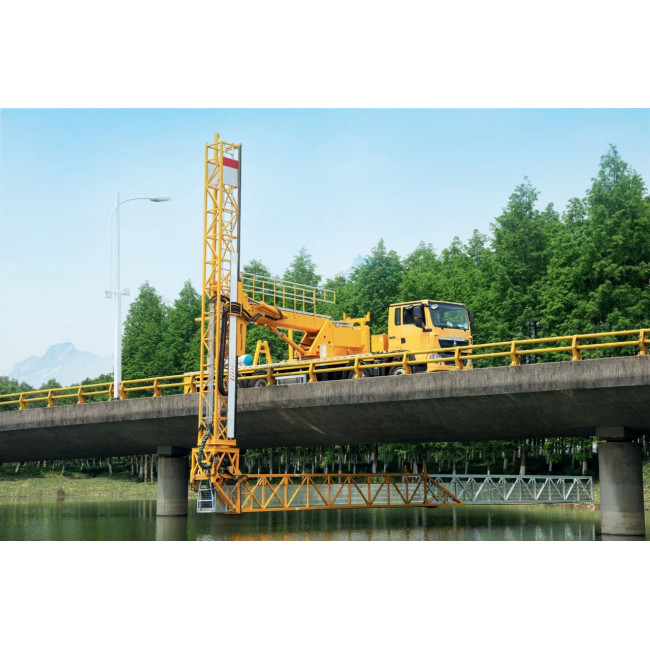

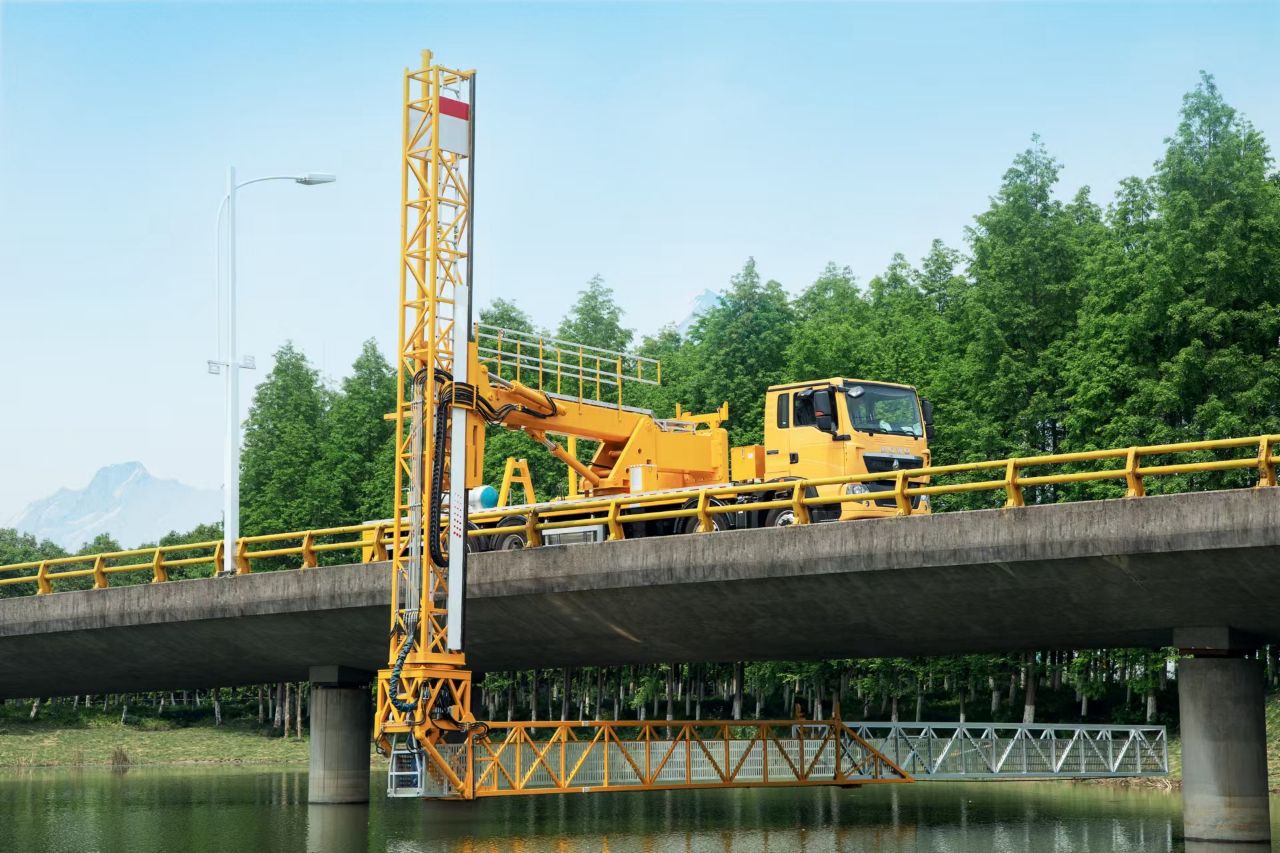

ISUZU GIGA 8x4 Overhead Aerial Work Platform - 300 HP, 24 Meters
Detailed technical description and specification of the equipment (PDF)Technical specifications:
| Manufacturing company | ISUZU | |
| Driving style | Left-hand drive | |
| Number of axles | 4 | |
| Drive type | 8х4 | |
| Total weight (kg) | 31000 | |
| Tire specifications | 295/80R22.5 18PR,12R22.5 18PR | |
| Maximum speed (km/h) | 89 | |
| Overall dimensions (mm) | 11595х2540х3040 | |
| Wheelbase (mm) | 1850+4575+1370 | |
| Front wheel | 2060/2060 | |
| Rear wheel | 1855/1855 | |
| Curb weight (kg) | 10350 | |
| Manufacturing Company | ISUZU (China) Engine Co., Ltd. | |
| Engine Layout | Vertical, Longitudinal | |
| Model | 6HK1-TCG60 | |
| Type | Common Rail high pressure | |
| Volume (ml) | 7790 | |
| Fuel type | Diesel fuel | |
| Emission standards | Euro 6 | |
| Rated power (hp)/(rpm) | 300/1800 | |
| Number of people permitted to be transported in the cabin (persons) | 2 | |
| Manufacturing company | ZF Transmission Technology (Hangzhou) Co., Ltd. | |
| Models | 8С2030ТО | |
| Operating method | manual | |
| Number of forward gears | 8 gears | |
| Type | Air pressure, dual-circuit, front disc and rear drum brakes | |
| Brake force adjustment method | Automatic clearance adjustment function | |
| Parking brake type | Manual, spring-loaded brake accumulator acting on the rear wheel | |
| Auxiliary braking system type | Exhaust brake | |
| Front | Type | Leaf spring 7/7 pcs. |
| Rear | Type | 10 springs |
Installation characteristics
| Maximum operating speed (m/min) | 13 |
| Maximum Horizontal Working Range (M) | 24 |
| Restrict Crossing Guardrail Height (m) | 5.2 |
| Crossing Sidewalk Width (m) | 3.9 |
| Maximum Occupied Width (m) | 2.55 |
| Maximum working depth (m) | 9.0 |
| Maximum lifting capacity of the working platform (kg) | 800 maximum load on |
| Front of the working platform (kg) | 400 |
| Working width of the platform (m) | 1.0 |
| First rotation range (°) | 0-90° |
| Per second rotation range (°) | 0-180° |
| Ship wind resistance rating | ≤12.5 m/s |
| Occupied lane width (m) | 2.55 |
| Control mode | remote control/electronic control/manual |
| Hydraulic system | with electro-hydraulic proportional servo system |
| Backup power | internal generator |
Technical description of the safety system of the boom-type bridge testing machine
I. Description of protective devices
- The machine is designed for maximum loads: when the load on the cylinders of the main boom and jib is exceeded by 1.25 times, their operation is blocked. The maximum load limiter can be designed and installed according to customer requirements.
- The machine is equipped with an anemometer for monitoring wind speed (0-30 m/s) in real time. At force 5 wind conditions, an alarm is activated; at force 6 wind conditions, all platform movements are blocked.
- The basic configuration does not include a horizontal stabilization system for the cradle platform, but a device that guarantees a deviation of no more than 5° over the entire working area can be installed upon request.
- Each degree of mobility is equipped with locking mechanisms that limit the working area.
- A blocking device for lifting/rotating the boom when the supports are not extended is implemented.
- A blocking device for adjusting the supports during operation is installed: height adjustment is possible only with the superstructure fully folded.
- An emergency lowering system is provided in case of hydraulic, electric drive, or pump failure.
- The basic version does not have a device for evacuating personnel from the cradle below the level of the base of the lift (available by special order).
- A support lock is equipped, preventing spontaneous extension/rotation when movement.
- The slope sensor in the rotary unit activates an alarm in case of critical deviations along the longitudinal/transverse axis.
- There is a duplicated (from the cradle and the ground control panel) emergency engine shutdown system with a "STOP" button.
- Duplex radio communication is installed for prompt interaction between personnel on the platform and the ground.
II. Requirements for the operation of protective systems
- According to a special requirement: all safety devices must disable the corresponding functions of the lift.
- When the protection is triggered, the associated movement stops, but the power unit remains active.
III. Overload limiter functionality (Available upon request):
- Audible warning when approaching the rated lifting capacity;
- Disabling the lifting/reach adjustment mechanisms when the load is exceeded by 110%;
- For double-cradle versions: the alarm and blocking are triggered by the total load of both platforms.
| Engine power, hp | 300 |
|---|---|
| Curb weight, kg | 10350 |
| Engine displacement, cm³ | 7790 |
| Wheel configuration / Drive formula | 8х4 |
| Wheelbase, mm | 1850+4575+1370 |
| Height, mm | 3040 |
| Length, mm | 11595 |
| Width, mm | 2540 |
| Engine | 6HK1-TCG60 |
| Fuel type | Diesel engine |
| Number of leaf springs | 7 |
| Tires | 295/80R22.5 18PR,12R22.5 18PR |
-
