| Lifting height, m15 | Payload capacity, kg220 | Engine power, hp189 |
| Wheelbase, mm3815 | Height, mm3530 | Length, mm6715 |
| Width, mm2185 | Engine4HK1-TCG61 | Tires235/75R17.5 16PR |
ABOUT THE CHASSIS
Compact dimensions for transportation and operation. Minimal footprint even with the boom extended.

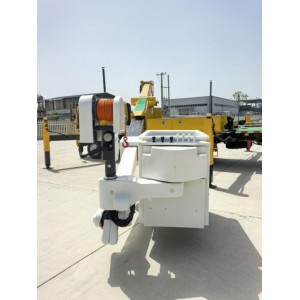

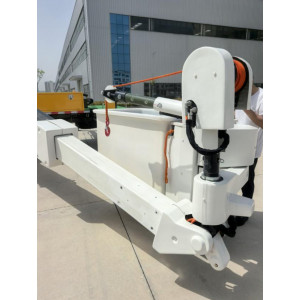

ABOUT THE BASKET
The basket design features a dielectric adapter to enhance personnel safety.
CONTROLS
The unit is equipped with both manual and remote control panels. The operator can perform all main functions with one hand.

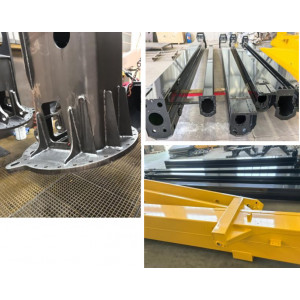

ABOUT THE BOOM
Telescopic boom with a synchronized system. Performs tasks using a dual lifting cylinder, ensuring stability and minimal vibrations during operation.
ABOUT THE OPERATOR'S CAB
The cab is designed with a swivel seat and pedals for maximum operator comfort.
ENHANCED SAFETY
The emergency system is equipped with sensors and mechanisms to ensure the highest level of safety in case of an emergency.

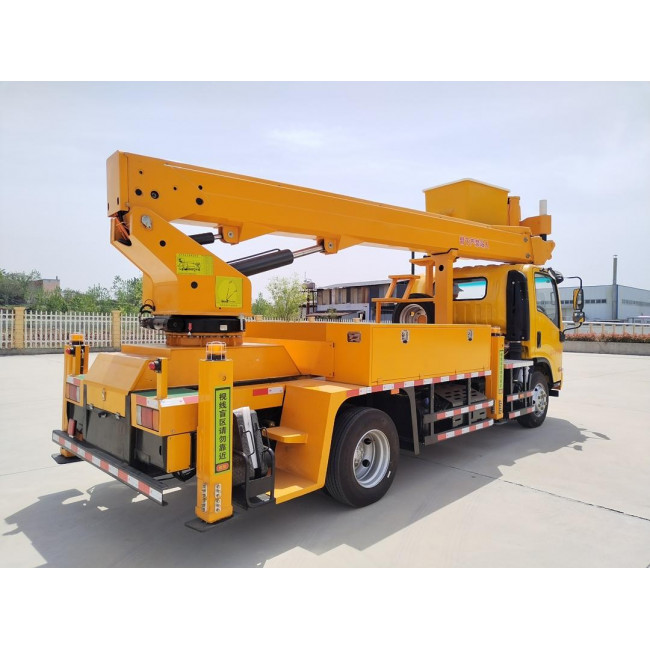

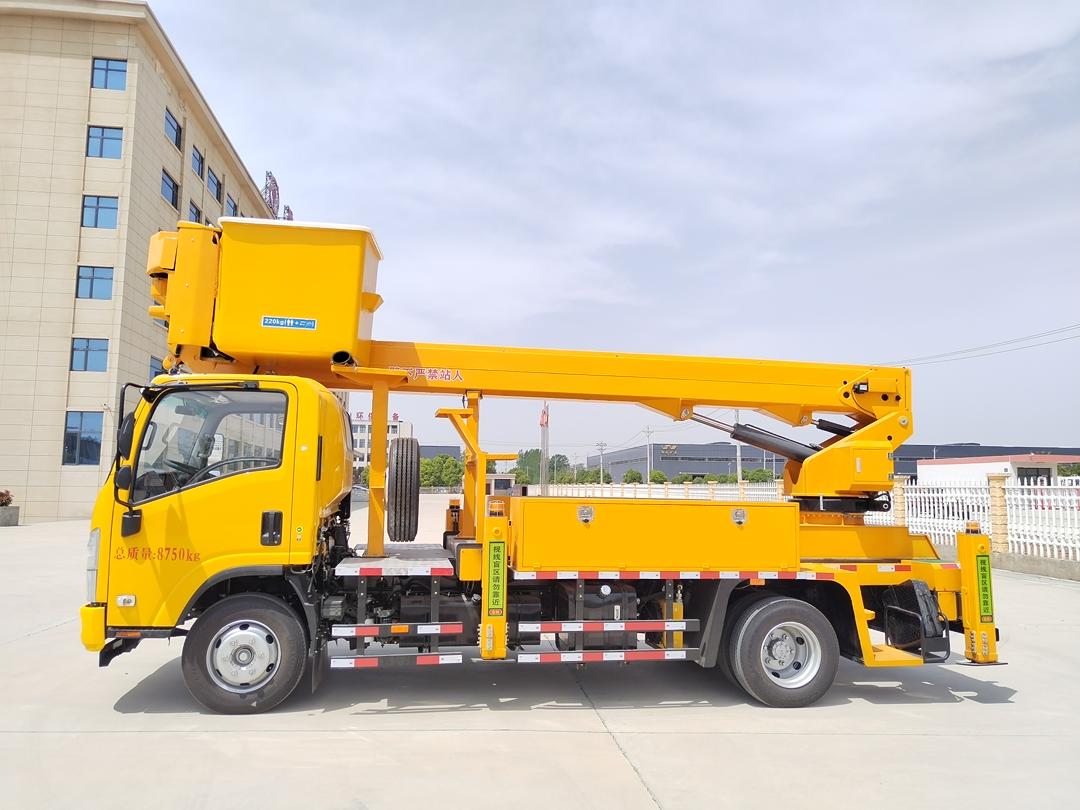

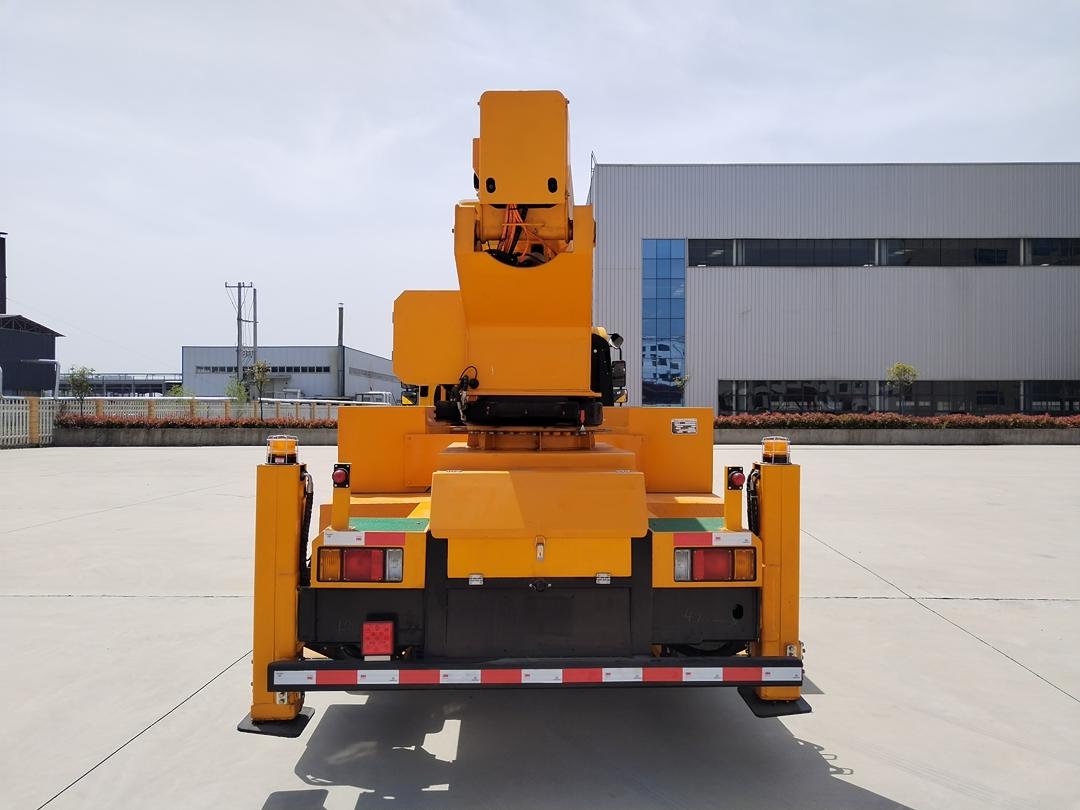

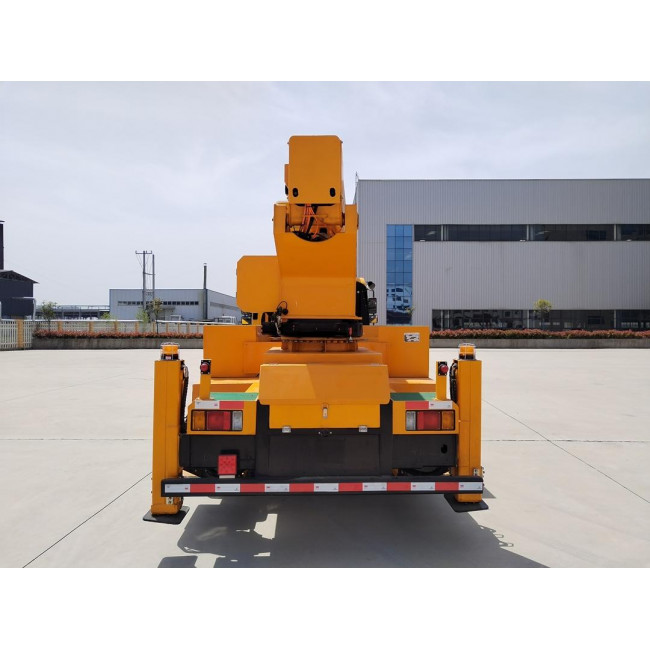

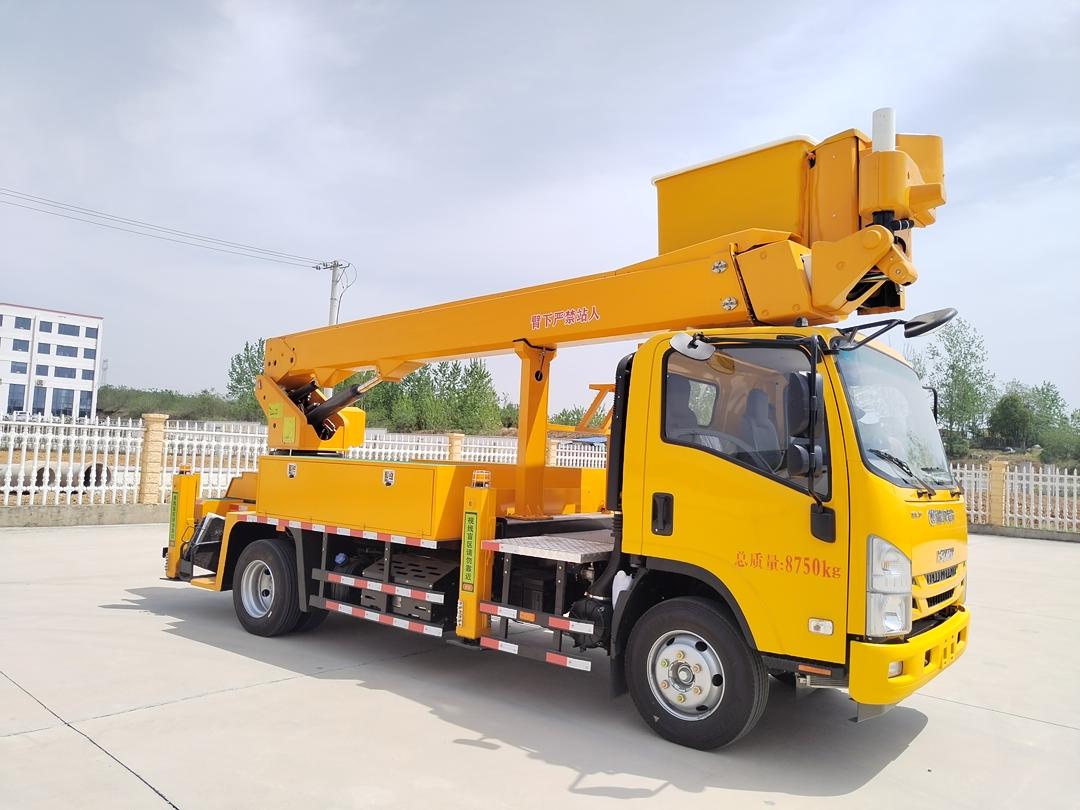

ISUZU ELF Aerial Work Platform - 15 Meters with Electrical Insulation
Technical Specifications
| CHASSIS COMPONENTS | ||
| Chassis Model | ISUZU 700P | |
| Engine Model | 4HK1-TCG61 | |
| Wheelbase | 3815 mm | |
| Engine power | 139 kW | |
| Tire size | 235/75R17.5 16PR | |
| EQUIPMENT SUPERSTRUCTURES | ||
| Overall dimensions | 6715 × 2185 × 3530 mm | |
| Gross weight | 8750 kg | |
| Rated voltage | 45 kV | |
| Insulated Basket Nominal Load Capacity | 220 kg | |
| Platform Rotation | 180° | |
| Articulated Boom Rotation | ±100° (Insulated Articulated Boom) — for increased flexibility and safety during interphase work | |
| Boom Configuration | Three-section telescopic boom (third section is insulated), with the possibility of installing an insulated crankshaft boom and an insulated hook | |
| Rotator | Continuous 360° rotation within the safety range | |
| Outriggers | H-shaped front and rear outriggers, independently adjustable. Distance between supports in width and length | |
| Distance between supports (in width/length) | 4500 / 4000 mm | |
| Automatic locking system between chassis and superstructure | Prevents erroneous actions that reduce stability | |
| Control system | Dual control - from the platform and from the ground | |
| Electrohydraulic proportional | ||
| Leveling system | Hydraulic main-auxiliary | |
| System of protection against unintentional retraction of cylinders | Prevents the boom from falling in the event of a pressure leak | |
| Outrigger locking system | Locks the outriggers when there is a loss of pressure in the system, preventing tipping over | |
| Emergency electro-hydraulic pump | Ensures emergency return of the worker in the basket to the ground in the event of failure of the chassis engine or main pump (equipped with an emergency stop) | |
| Additionally | Engine start and stop, remote accelerator control, hydraulic Tool interface, insulating insert in the cradle, waterproof hard casing, hydraulic lifting, rotation and extension of the platform, insulated knee element | |
| Lifting height, m | 15 |
|---|---|
| Payload capacity, kg | 220 |
| Engine power, hp | 189 |
| Wheelbase, mm | 3815 |
| Height, mm | 3530 |
| Length, mm | 6715 |
| Width, mm | 2185 |
| Engine | 4HK1-TCG61 |
| Tires | 235/75R17.5 16PR |
| Weight, kg | 8750 |
-
