| Engine power, hp190 | Wheel configuration / Drive formula4х2 | Wheelbase, mm3 815 |
| Chassis payload capacity, kg4 885 | Height, mm2 650 | Length, mm5 900 |
| Width, mm2 550 | Chassis modelELF 9.5 NORMAL | Engine4HK1 (4HK1E5CC) |

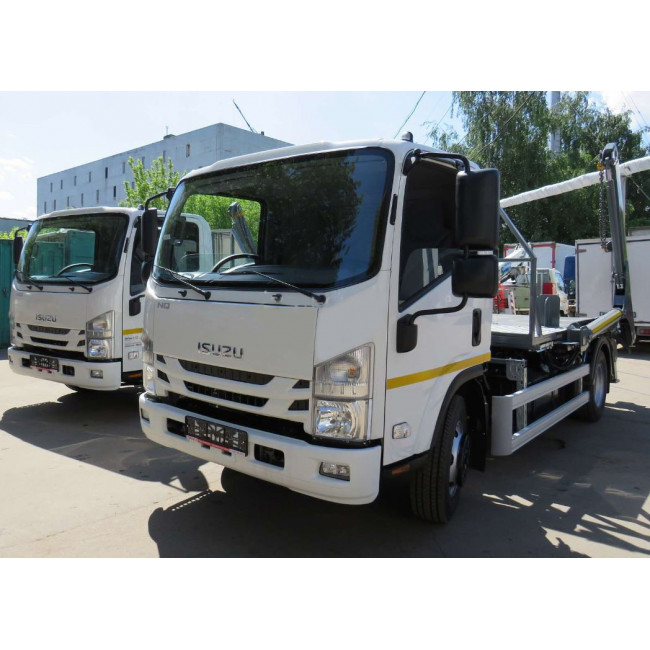

ISUZU ELF Bunker Truck
| Specifications and Description of the Superstructure | |
|---|---|
| Chassis Model | ISUZU ELF 9.5 |
| Modification | ISUZU ELF 9.5 NORMAL |
| Loading and Unloading Equipment Load Capacity, kg 6,000 Working Pressure in Hydraulic System, atm. 280 | MCBT-6 |
| Country of origin | Spain |
| Loading capacity, kg | 6,000 |
| Maximum container volume, cubic meters | 8 |
| Working fluid (oil) | VmGZ |
| Standard equipment | Telescopic booms, hydraulic rear outriggers, remote control in Cabin |
| RRP, rubles. | On request |
|
Chassis specifications and description | ||||
|---|---|---|---|---|
|
Chassis model |
ISUZU ELF 9.5 |
|||
|
Modification |
ISUZU ELF 9.5 SHORT |
ISUZU ELF 9.5 NORMAL |
ISUZU ELF 9.5 LONG |
ISUZU ELF 9.5 EXTRALONG |
|
Cabin |
Single row, 3-seater, no berth. Updated design. |
|||
|
Engine | ||||
|
Model |
ISUZU 4HK1 (4HK1E5CC) |
|||
|
Engine type |
Four-stroke, liquid-cooled, diesel (common rail) with variable geometry turbocharging (VGS) and CVS, with EGR system and additional DOC (Diesel Oxidation Catalyst) catalytic converter in the exhaust system |
|||
|
Economic class |
Euro-5 |
|||
|
Number of cylinders, arrangement |
4 / in-line |
|||
|
Timing belt type |
SOHC, 16-valve |
|||
|
Engine displacement, cc |
5,193 |
|||
|
Maximum power, kW (hp) at rpm |
140 / 190 at 2,600 |
|||
|
Engine torque, Nm at rpm |
513 at 1,600-2,600 |
|||
|
Clutch |
Dry, Single-disc |
|||
|
Drive / Drive Wheels |
4x2 / Rear |
|||
|
Transfer Case |
None |
|||
|
Chassis | ||||
|
Gearbox Model |
ISUZU MZZ6F |
|||
|
Transmission Type |
6-speed, manual |
|||
|
Brakes |
Air with ESC (includes ABS and ASR) |
|||
|
Brakes, front / rear |
Drum / Drum |
|||
|
Front / Suspension Rear |
Spring / Leaf spring |
|||
|
Permissible front axle load, kg |
3100 |
|||
|
Permissible rear axle load, kg |
6400 |
|||
|
Distance between frame side members, mm |
850 |
|||
|
Frame channel dimensions, mm |
216 x 70 (6 mm thick) |
|||
|
Tires |
225/75R17.5 |
215/75R 17.5 |
||
|
Fuel tank capacity, l |
140 |
|||
|
On-board voltage, V |
24 |
|||
|
Starter |
24V-4.5 kW |
|||
|
Generator |
24V-80A |
|||
|
Basic options Chassis | ||||
|
Heated rearview mirrors |
+ |
|||
|
Power rearview mirrors |
- |
|||
|
Exhaust brake ("exhaust brake") |
+ |
|||
|
Main fuel filter with heated water separator |
+ |
|||
|
Fuel Pre-Filter |
+ |
|||
|
Tilt and Telescope Adjustable Steering Column |
+ |
|||
|
Audio Prep + Antenna |
+ |
|||
|
Rear Buzzer + |
+ |
|||
|
Daytime running lights |
+ |
|||
|
Fog lights |
+ |
|||
|
Folding parking brake and gear levers |
- |
|||
|
Sun visor for driver and passenger |
+ |
|||
|
Shelves in the cabin above the driver and outer passenger |
+ |
|||
|
Windshield wipers with adjustable frequency |
+ |
|||
|
Fabric seat upholstery |
+ |
|||
|
Full cabin interior trim |
+ |
|||
|
Front bumper and radiator grille painted in cabin color |
+ |
|||
|
Cab door opening angle 90 degrees |
+ |
|||
|
Front anti-roll bar axles |
+ |
|||
|
Rear axle anti-roll bar |
- |
|||
|
ERA-GLONASS UVEOOS |
+ |
|||
|
Manual air conditioning |
+ |
|||
|
Electric Power windows |
+ |
|||
|
Central locking |
+ |
|||
|
Dimensions and weights | |
|---|---|
|
Chassis model |
ISUZU ELF 9.5 |
|
Modification |
ISUZU ELF 9.5 NORMAL |
| Length x Width x Height, mm | 5,900 x 2,550 x 2,650 |
| Wheelbase, mm | 3,815 |
| Minimum ground clearance, mm | 210 |
| Front / rear track, mm | 1680 / 1650 |
| Gross vehicle weight, kg | 9500 |
| Curb weight, kg | 4,615 |
| Load capacity, kg | 4,885 |
p
| Engine power, hp | 190 |
|---|---|
| Wheel configuration / Drive formula | 4х2 |
| Wheelbase, mm | 3 815 |
| Chassis payload capacity, kg | 4 885 |
| Height, mm | 2 650 |
| Length, mm | 5 900 |
| Width, mm | 2 550 |
| Chassis model | ELF 9.5 NORMAL |
| Engine | 4HK1 (4HK1E5CC) |
| Tires | 225/75R17.5, 215/75R 17.5 |
| Weight, kg | 9500 |
-
