| Engine power, hp205 / 190 | Wheel configuration / Drive formula4х4 | Wheelbase, mm5150 |
| Height, mm2450 | Length, mm8860 | Width, mm2236 |
| Engine4HK1-TCG60 / 4HK1-TCG61 | Tires8.25R20 16 PR / 245/70R19.5 16PR |

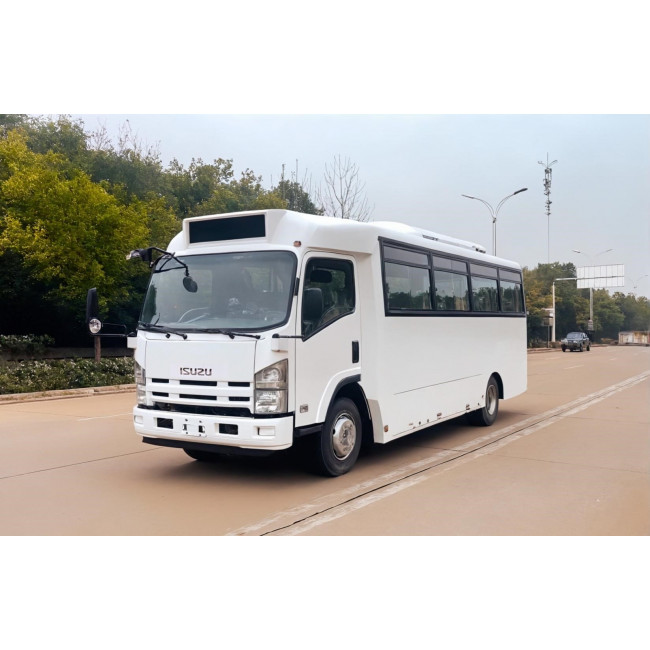

ISUZU Bus, 4x4, 35 seats
| 1) Weight and size | ||||
| 1 | Gross vehicle weight | 11995 kg | ||
| 2 | Chassis tare weight | 3995 kg | ||
| 3 | Front axle load | 4000 kg | ||
| 4 | Rear axle load | 7995 kg | ||
| 5 | Overall size | 8860×2236×2450 mm | ||
| 6 | Wheelbase | 5150 mm | ||
| 7 | Front overhang | 1160 mm | ||
| Rear overhang | 2550 mm | |||
| 8 | Front track | 1680 mm | ||
| Rear track | 1720 mm | |||
| 2) engine and gearbox | ||||
| 1 | Engine model | 4HK1-TCG60 | 4HK1-TCG61 | |
| 2 | Engine power | 205 hp | 190 hp | |
| 3 | Volume Engine | 5193 ml | 5193 ml | |
| 4 | Gearbox Model | Brand: ISUZU Model: MLD 6 Speed | ||
| 5 | Emission Standard | Euro 6 | ||
| 6 | Air conditioning | yes | ||
| 7 | Electric window | yes | ||
| 8 | Central locking | yes | ||
| 9 | Remote control key | yes | ||
| 10 | Driving mode | 4×4 | ||
| 3) cabin | ||||
| 1 | Cab type | Flat roof | ||
| 2 | Single or with a berth | Single | ||
| 3 | Driver's seat | Air suspension seat | ||
| 4 | Steering | Power Steering | ||
| 5 | Instrument Panel | English | ||
| 6 | Chassis Model | QL1120AJPAY | ||
| 4) Tires and Brakes | ||||
| 1 | Tire Model | 8.25R20 16 PR | 245/70R19.5 16PR | |
| 2 | Number of Tires | 6 pc+1pc | ||
| 3 | Brake type | Air brakes | ||
| 4 | Brake type | Drum | ||
| 5 | ABS system | Yes | ||
| 6 | Exhaust pipe | Located on the rear | ||
| 5) suspension | ||||
| 1 | Spring | 9/10+6 | ||
| 2 | Rear air suspension | No | ||
| 3 | Tank capacity | 100 l ×2, steel | ||
| 4 | Frame type | Single, thickness: 6 mm | ||
| 5 | Battery master switch | yes | ||
3) Superstructure
3.1) 35 seats, including the driver
3.2 ) Electric folding passenger door with remote control lock
3.3 ) Central independent heating (cooling capacity: 14,000 kcal/h) + 1 roof fan
3.4 ) Passenger seat material: Artificial leather
3.5 ) Roof light + boarding step light + full set of lights
3.6) Sliding windows
3.7) Thermal insulation sleeves for wire harnesses
3.8) Deep luggage compartment: 1 cubic meter
3.9) Floor covering with a wood pattern
3.10) Full curtains for the car
3.11) Rear view camera
| Engine power, hp | 205 / 190 |
|---|---|
| Wheel configuration / Drive formula | 4х4 |
| Wheelbase, mm | 5150 |
| Height, mm | 2450 |
| Length, mm | 8860 |
| Width, mm | 2236 |
| Engine | 4HK1-TCG60 / 4HK1-TCG61 |
| Tires | 8.25R20 16 PR / 245/70R19.5 16PR |
-
