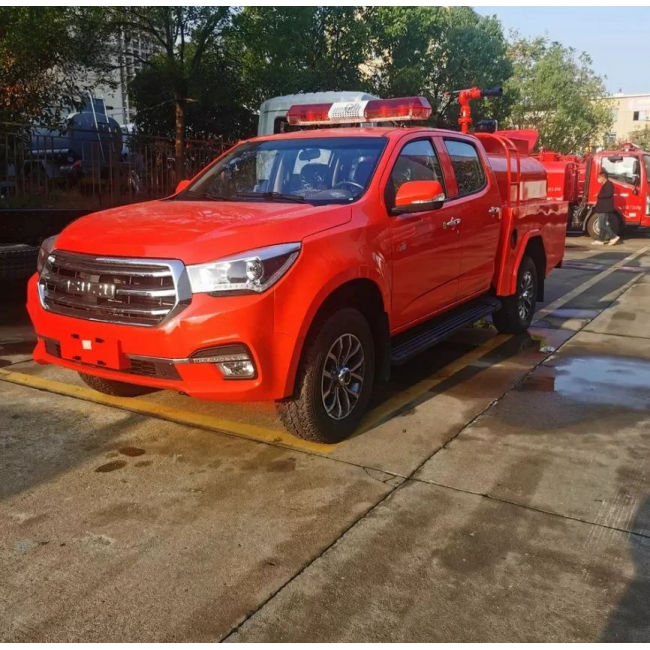

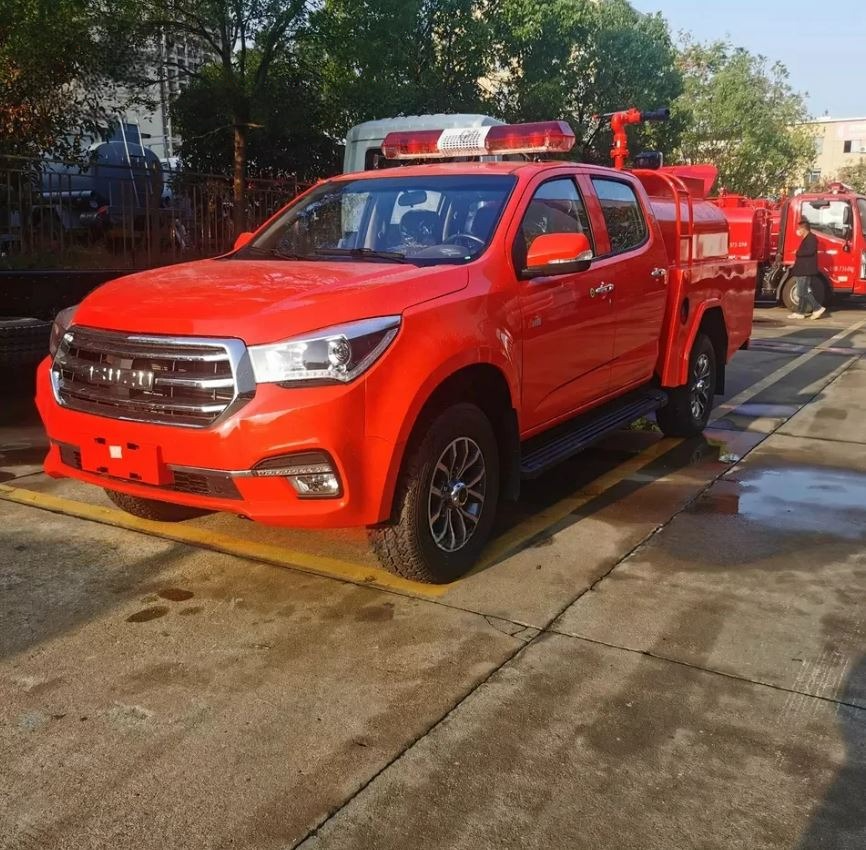

Fire pickup truck 4WD ISUZU 4x4, 141 hp
Specification
| Engine power, hp141 | Wheel configuration / Drive formula4х4 | Wheelbase, mm2600 |
| Height, mm2360 | Length, mm5230 | Width, mm1670 |
| Weight, kg3390 |
Description
Fire truck 4WD ISUZU 4x4, 141 hp.
| vehicle | name | 4WD pickup ISUZU mini | |||
| Overall dimensions: | 5230 × 1670 × 2360 (mm) | ||||
| total weight | 3390 kg | ||||
| curb Weight | 2420 kg | ||||
| Loading quality | 820 kg | ||||
| Number of passengers | 2 | ||||
| Approach/departure angle | 21 / 17 (°) | ||||
| Chassis | Overall | ISUZU TAGA | |||
| Chassis model | QL1035SJ16QC | ||||
| cab | double | ||||
| wheelbase | 2600 mm | ||||
| engine | 141 hp | ||||
| Emission standards | Euro VI | ||||
| gearbox | 5th gear with Double-cone synchronizer | ||||
| tire | 175Р14ЛТ | ||||
| others | Power steering/multifunction steering wheel/LCD instrument panel/window lifters/central locking/air conditioning/MP5 phone/Bluetooth/cruise with fixed seat belt/LED daytime running lights/electric rearview mirrors + heated | ||||
| special function | fluid reservoir | Fluid | Water 920 kg Fire extinguishing agent 80 kg | ||
| Material | High-strength high-quality stainless steel | ||||
| Fire pump | Model | Italy RTX 70-200 high-pressure plunger pump | |||
| Installation location | Rear | ||||
| Flow | 60L / min | ||||
| Maximum pressure | 20MPa | ||||
| Rated speed | 1450 rpm | ||||
| Power | Provided chassis engine | ||||
| Link hose | 75 m (fixed) + 25 m (portable reel) | ||||
| Power take-off and transmission system | Design type | Mechanical transmission Sandwich type | |||
| Clutch mode | Manual control | ||||
| Lubrication method | Grease splash | ||||
| Transmission system | PTO cross shaft | ||||
| Piping system | Inlet pipe | DN50 ball valve control | |||
| High pressure outlet pipe | Pressure 20 MPa | ||||
| High pressure return pipe | Pressure 20 MPa | ||||
| Water injection line | 1 water injection port Φ65 mm | ||||
| Mobile high pressure reel | 2 | ||||
| Multi-functional spray gun | model | QMX10/60-WTL | |||
| Reactive Form | DC, Water Mist | ||||
| Assortment | DC State | Water Mist State | |||
| ≥15m | ≥9m | ||||
| Lighting Equipment | 360° Lifting Lighting | Model | Wilbur 24-LED | ||
| Power | 80W (LED) | ||||
| Lifting height | 3.5 m (from the ground) | ||||
| Voltage | 12V | ||||
| Control method | Remote control | ||||
| Other lamps | Police lights/sirens/parking lights/side lights | ||||
| Ladders and stair frames | Material | Aluminum alloy | |||
| Extended Height | 4 meters | ||||
| ＊Note: This parameter is the manufacturer's standard configuration and can be changed according to customer needs. | |||||
Specifications Fire pickup truck 4WD ISUZU 4x4, 141 hp
Equipment Specifications
| Engine power, hp | 141 |
|---|---|
| Wheel configuration / Drive formula | 4х4 |
| Wheelbase, mm | 2600 |
| Height, mm | 2360 |
| Length, mm | 5230 |
| Width, mm | 1670 |
| Weight, kg | 3390 |
