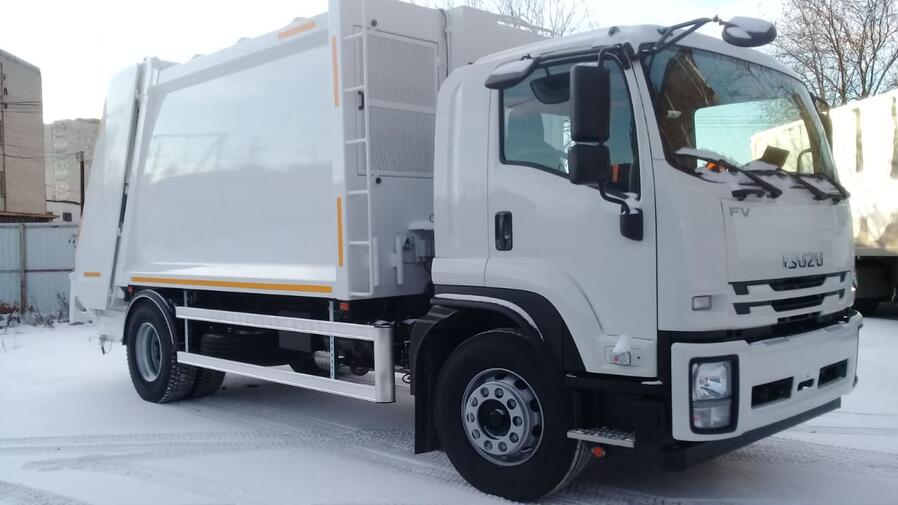

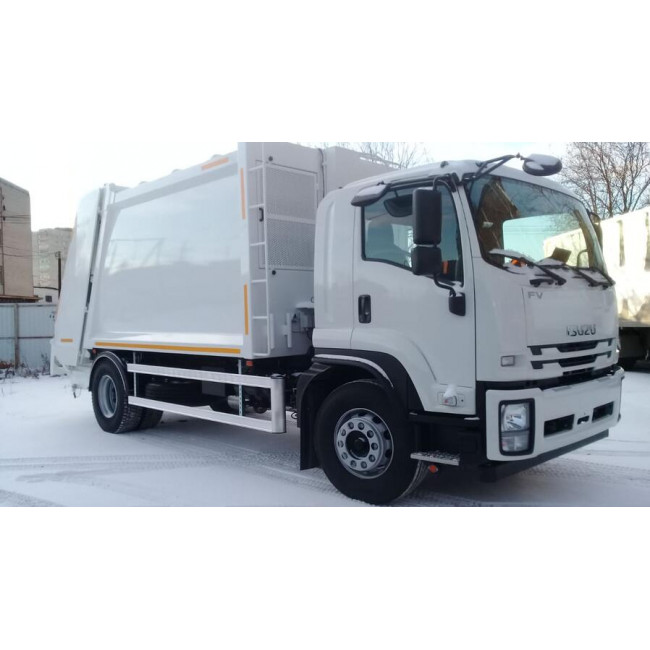

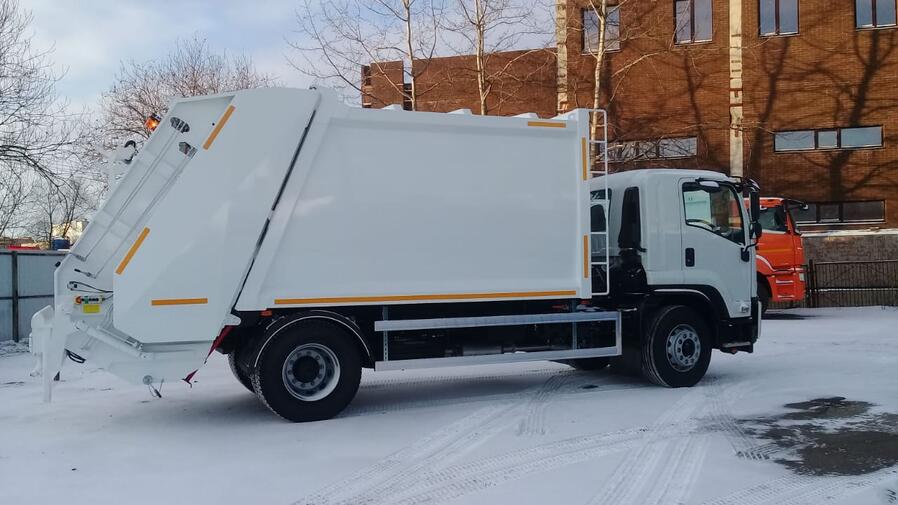

ISUZU 8 m3 HARVEST garbage truck
Specification
| Engine power, hp190 | Volume, m³8 | Wheel configuration / Drive formula4х2 |
| Height, mm2535 | Length, mm5985 | Width, mm2290 |
| Engine4HK1 (4HK1E5CC) | Weight, kg9500 |
Description
| TECHNICAL SPECIFICATIONS | |
| Load capacity, kg | 3500 |
| Permitted gross vehicle weight, kg | 9500 |
| Engine power, hp | 190 |
| Compaction ratio | 1:6 |
| Wheel arrangement | 4x2 |
| Overall dimensions | |
| (length x width x height), mm | 5985 x 2290 x 2535 |
| Body volume, m3 | 8 + 1.1 |
| CHASSIS SPECIFICATIONS | |
| Basic Chassis | ISUZU ELF 9.5 SHORT (ISUZU NQR90L-H) |
| Wheel Arrangement | 4x2 |
| Engine | ISUZU 4HK1 (4HK1E5CC) |
| Engine Type | Diesel |
| Engine Power (HP) | 190 |
| Gearbox | 6-speed, manual |
| Gearbox Model | ISUZU MZZ6F |
| Gross Vehicle Weight (KG) | 9,500 |
| EQUIPMENT SPECIFICATIONS | |
| Cabin Volume | 8+1.1 cubic meters rear-loading type |
| Body type | without profiles |
| Body is made of | ST-52 steel |
| Body floor | 5 mm |
| Body sides | 4 mm |
| Body roof | 3 mm |
| Container lifting mechanism (new design) is designed for lifting 1100/770 (800 l) metal and 120-240-1100 l plastic containers, as well as 8 m3 | |
| The container lifting mechanism is manually controlled | |
| The lid gripper completely covers the lifting pins | |
| Automation system | |
| The container pressing and lifting mechanism can be controlled | |
| manually using 4 levers without a sensor | |
| Hydraulic system suitable for tandem pump | |
| Hydraulic clutches for gear pump | included |
| Hydraulic gear pump | included tandem pump |
| Liquid fraction collection system | |
| Plastic Mudguards |
Specifications ISUZU 8 m3 HARVEST garbage truck
Equipment Specifications
| Engine power, hp | 190 |
|---|---|
| Volume, m³ | 8 |
| Wheel configuration / Drive formula | 4х2 |
| Height, mm | 2535 |
| Length, mm | 5985 |
| Width, mm | 2290 |
| Engine | 4HK1 (4HK1E5CC) |
| Weight, kg | 9500 |
