| Lifting height, m16 | Payload capacity, kg500 | Engine power, hp151 |
| Wheelbase, mm4500 | Height, mm3460 | Length, mm7540 |
| Width, mm2330 | Chassis modelElf | Engine4HK1-TCG60 |
ABOUT THE CHASSIS
Compact dimensions for transportation and operation. Minimal footprint even with the boom extended.
ABOUT THE BASKET
The basket design features a dielectric adapter to enhance personnel safety.

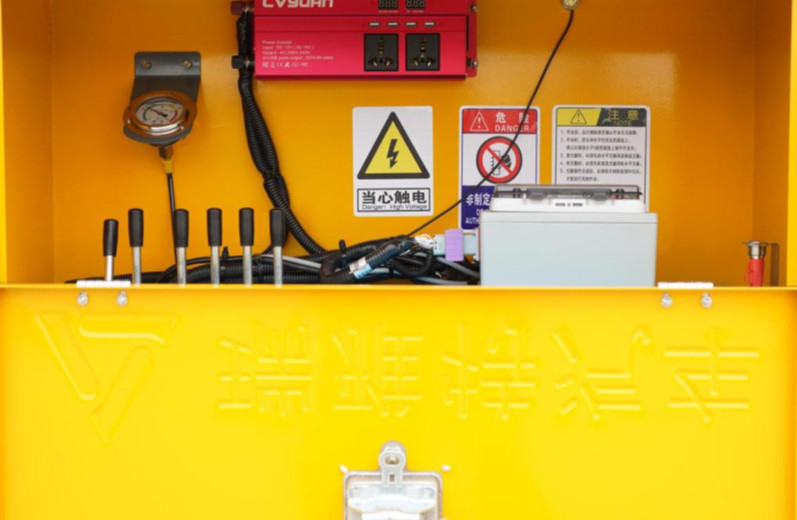

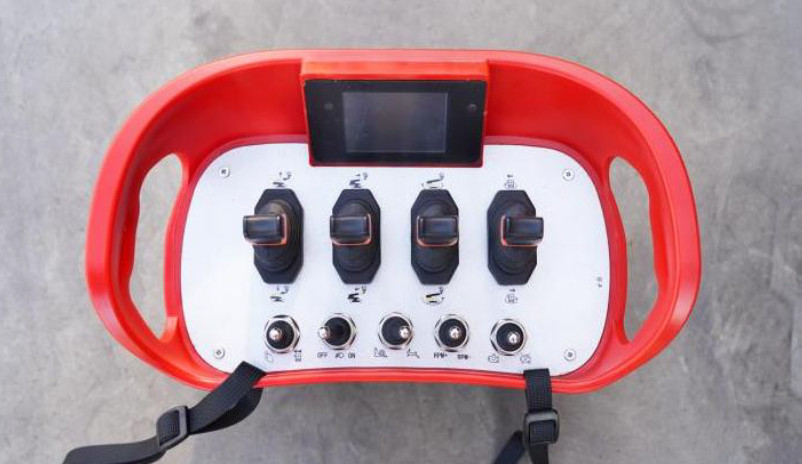

CONTROLS
The unit is equipped with both manual and remote control panels. The operator can perform all main functions with one hand.
ABOUT THE BOOM
Telescopic boom with a synchronized system. Performs tasks using a dual lifting cylinder, ensuring stability and minimal vibrations during operation.

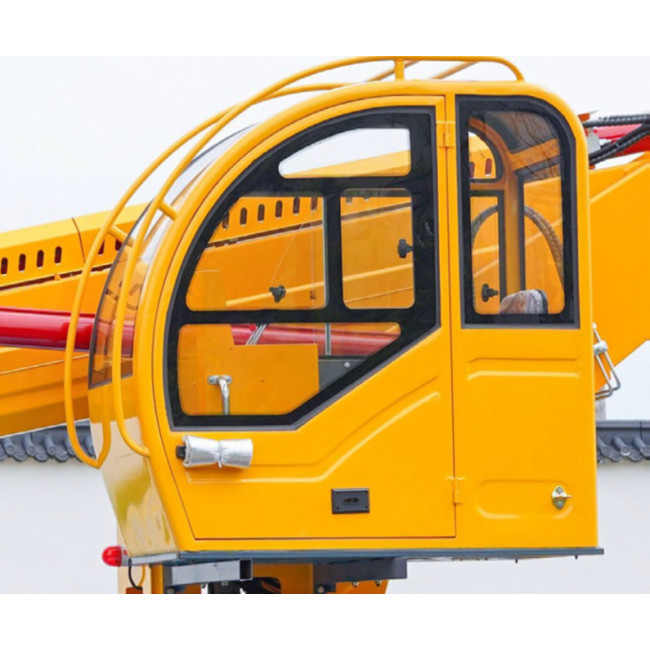

ABOUT THE OPERATOR'S CAB
The cab is designed with a swivel seat and pedals for maximum operator comfort.
ENHANCED SAFETY
The emergency system is equipped with sensors and mechanisms to ensure the highest level of safety in case of an emergency.
ISUZU ELF aerial platform, 4x2, 151 hp, 16 meters (500 kg)
The ISUZU ELF aerial platform on the chassis is a professional solution for performing work at height with maximum efficiency and safety. With a working height of up to 16 meters and a basket load capacity of 500 kg, it will become an indispensable assistant in construction, utility maintenance, installation and emergency rescue operations.
Blagoveshchensk - 6,100,000 ₽
Technical specifications:
| Vehicle | Main technical parameters |
| Total weight (kg) | 7,300 |
| Vehicle size, mm | 7540 × 2330 × 3460 |
| Engine model | 4HK1-TCG60 |
| Gearbox | MLD-6Q |
| Power (hp) | 151 |
| Engine capacity, l | 5.193 |
| Cab equipment | Air conditioner |
| Wheelbase (mm) | 4,500 |
| Tire specifications | 295/80R22.5 18PR |
| Number of people in cabin | 3 |
| Ecological class | VI |
| Lifting system | |
| Maximum working height, m | 16 |
| Working platform load, kg | 500 |
| Platform size, mm | 3000 × 700 × 1000 |
| Telescopic boom design | Oil cylinder and cable |
| Lifting cylinder | 2 |
| Working range at maximum height, m | 5 |
| Boom rotation angle | 360° |
| Boom control methods | Remote control, electronic control, manual control |
| Safety system | Automatic emergency mode |
| Leveling system | Automatic hydrostatic |
| Outrigger span, mm (long./trans.) | 5800 / 5800 |
| Safety system | |
| Automatic emergency pump | |
| Emergency stop device for the working platform | |
| Automatic locking device in case of non-compliance with safety rules (platform) | |
| Automatic working range limiter | |
| Outrigger stability controller | |
| Safety lights | |
| Equipment | |
| Jack, fire extinguisher, tool kit, control panel for the tower, charger for the panel, reflective vest, spare tire. | |
✔ Power and reliability – ISUZU engine 126 hp (ecological class 6) in combination with a five-speed gearbox ensures high productivity and efficiency.
✔ Versatility – 7-section telescopic boom with 360° rotation and a working range of up to 5 m at maximum height.
✔ Safety – hydraulic automatic leveling, emergency system, control from 3 points (remote control, electronics, manual).
✔ Comfort and capacity – spacious cabin for 3 people, basket size 3000 × 700 × 1000 mm.
✔ Ready for work – full maintenance before operation, all documents for registration with Rostekhnadzor (EPTS, OTTS).
Full package of documents
Official dealership
Certificate of conformity
Service book
Passport for Rostekhnadzor
Pre-sale preparation
| Lifting height, m | 16 |
|---|---|
| Payload capacity, kg | 500 |
| Engine power, hp | 151 |
| Wheelbase, mm | 4500 |
| Height, mm | 3460 |
| Length, mm | 7540 |
| Width, mm | 2330 |
| Chassis model | Elf |
| Engine | 4HK1-TCG60 |
| Platform/Basket dimensions, mm | 3000х700х1000 |
| Tires | 7.00R16LT 8РR |
| Weight, kg | 7300 |
-
