ISUZU ELF 4x2 Truck Loader, 205 HP, XCMG 5 Tons, 6 Tons

ISUZU ELF flatbed truck, 4x2, 205 hp, XCMG 5 tons, side: 6 tons

Technical specifications:

Dimensions: 8860 × 2170, 2236 × 2450 mm
Total weight: 11995 kg
Chassis model: QL1120AJPAY
Board load capacity: 6000 kg
Engine model: 4HK1-TCG60
Volume: 5193 ml
Power: 151 kW / 205 hp
ABS: Yes
Axle load: 4000/7995 kg
Fuel type: Diesel
Number of axles: 2
Springs: 3/3+2.9/10+6
Wheelbase: 5150  kg
Front track: 1680, 1650, 1720 mm
Max speed: 110 km / h
Front and rear overhang: 1160/2550
People in the cab: 3
Environmental class: GB17691-2018
Tire specifications: 8.25R20 16PR
Approach / departure angle: 20/13
Number of wheels: 6

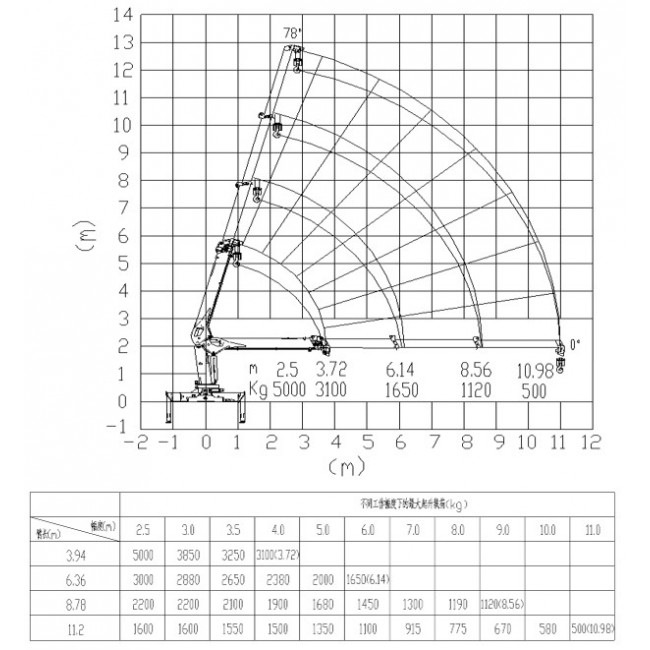

Technical parameters of the installation:

Model: XCMG SQS125
Maximum lifting moment: 12.5 kN•m
Maximum lifting weight: 5000 kg
Maximum boom length: 11.2 m
Maximum lifting height: 12.4 m
Boom length: 3.94~11.20 m
Amplitude range: ° 0～78°
Slewing angle: 360°
Outrigger reach: 2.15~5.1 m
Unit weight: -
Rated system flow: 63 l/min
Rated working pressure: 22 MPa
Recommended power: 26 kW
Working temperature: -25℃—+40 ℃
Hydraulic oil tank capacity: 90L

1. The single-cylinder rope is retracted synchronously, and the boom is retracted efficiently and reliably.
2. The lower hexagonal boom cross section is adopted, which ensures good centering and high cross-sectional bending resistance.
3. High-position seat manipulation, four-position seat manipulation, boarding manipulation, and boarding and unboarding manipulation are divided into different types of manipulation to meet the needs of different customers.
4. The automatic hook end position setting device maximizes the time saving for preparation before and after the operation, ensures that the customer's vehicle can be put into working condition in the shortest time, prevents damage to the lifting device caused by hook rotation, and improves driving safety.
5. Anti-rollover protection device, if the hook rolls due to user carelessness or ignorance of the operating principle of the lift, the anti-rollover alarm will call the police in time to remind the operator to stop and continue closing the hook to ensure human safety and damage caused by cable breakage.
6. Standard work lights are equipped to facilitate night work.
