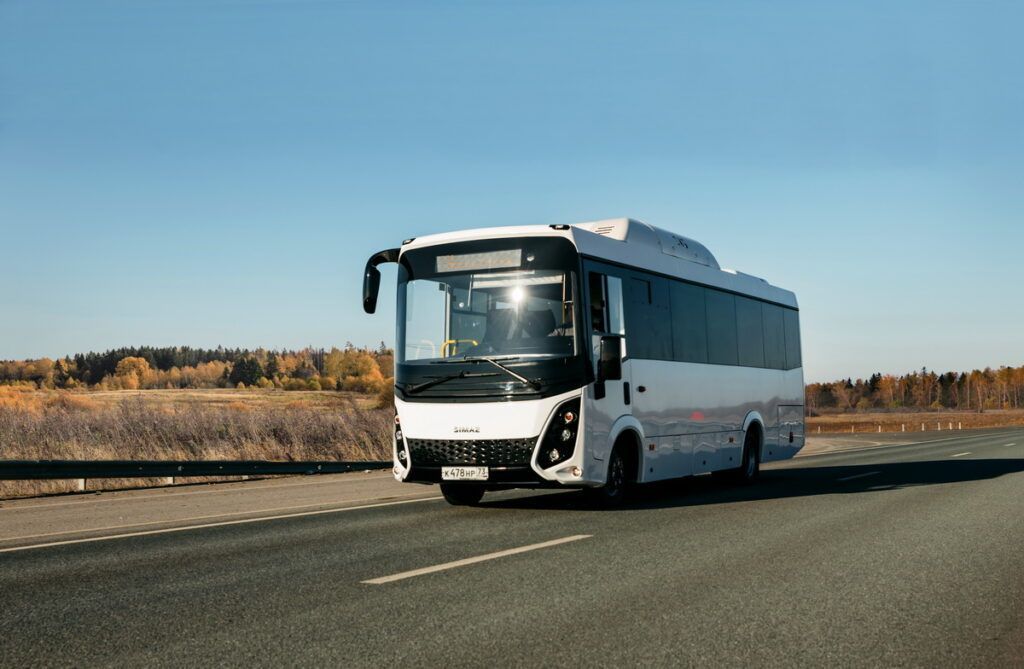

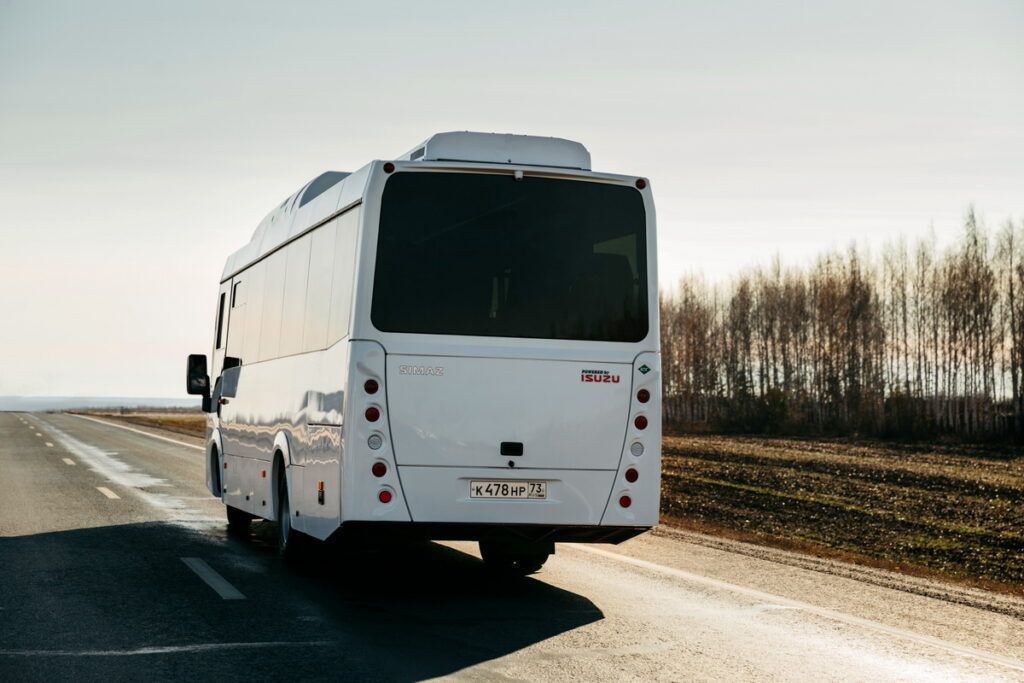

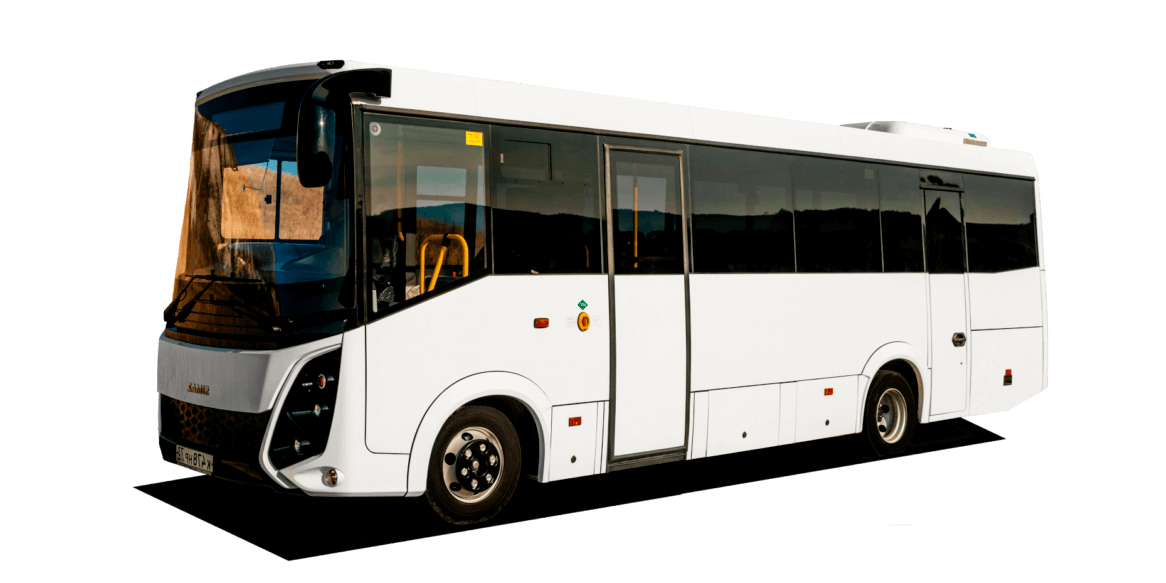

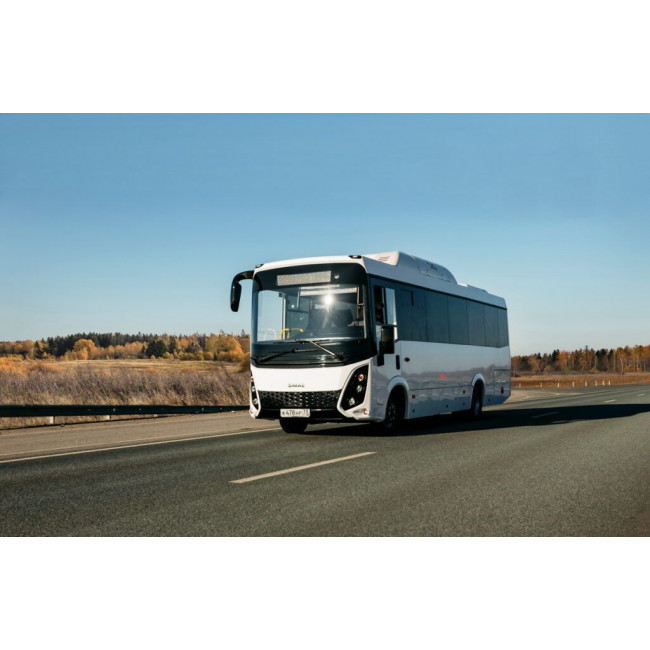

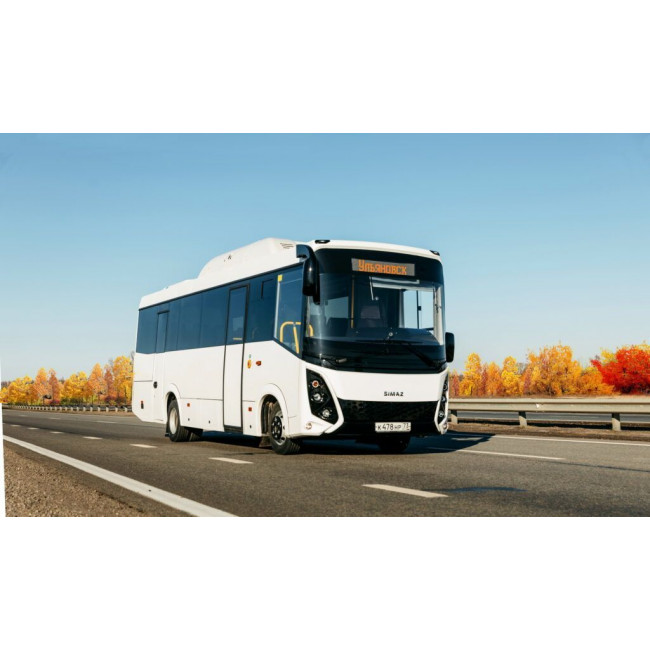

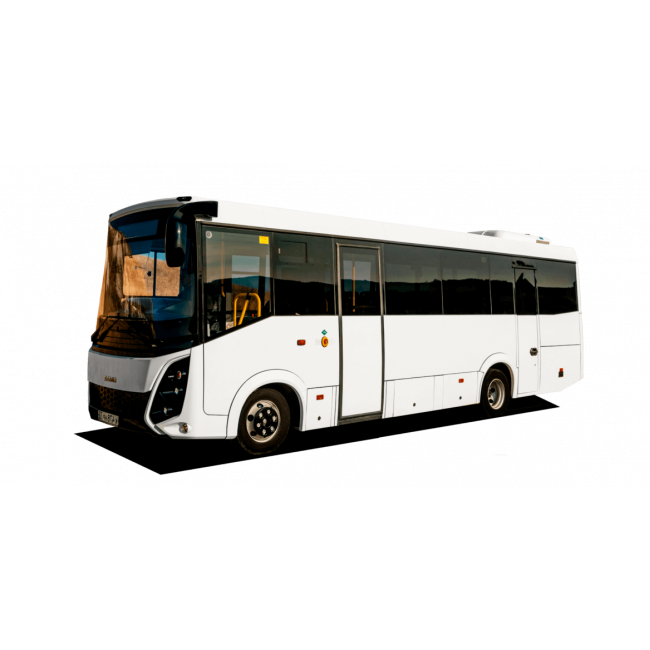

Bus SIMAZ 2258-30 CNG, 130 hp
Specification
| Engine power, hp130 | Wheelbase, mm4475 | Height, mm3322 |
| Length, mm8700 | Width, mm2234 | Engine4HV1 |
| Weight, kg8900 |
Description
SIMAZ 2258-30 CNG Bus
Technical Specifications| Technical Specifications | SIMAZ Intercity Bus | |
| Brand | SIMAZ | |
| Model | 2258-0000010-538 | |
| Number of Seats | 30+1 | |
| Body Type | Frame, wagon-type with front Engine location | |

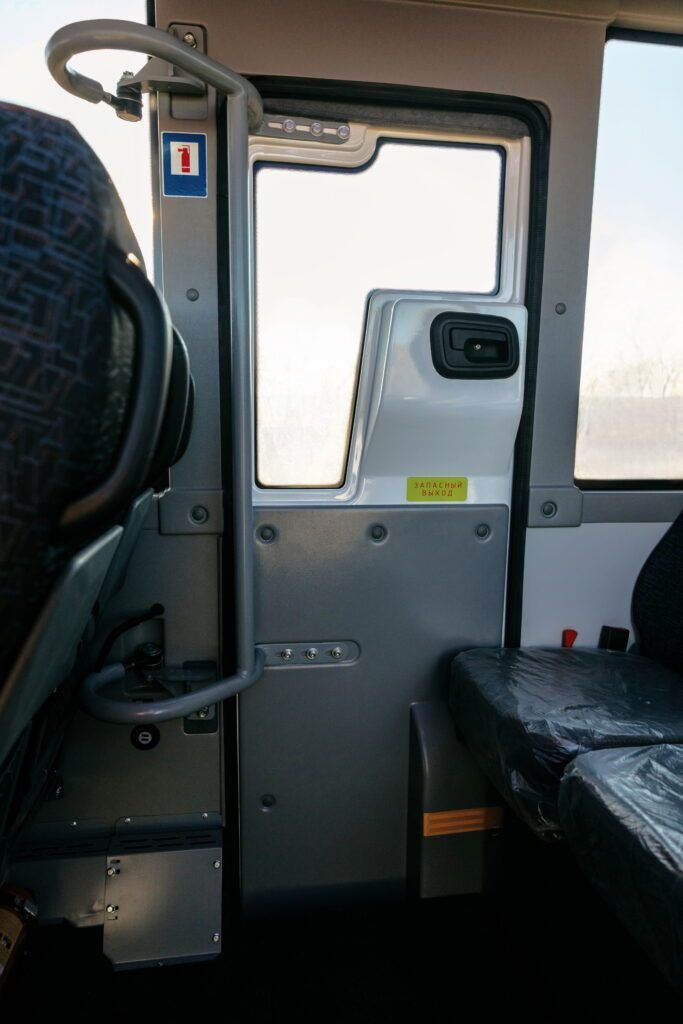

| Number of passenger doors | Two: one sliding door, the other emergency door. | |
| Body trim material | Galvanized steel sheet/Fiberglass panels | |
| Overall dimensions, mm | 8700/2234/3322 | |
| Front/rear track, mm | 1680/1650 | |
| Curb weight, kg | 4850…5550 | |
| Gross weight, kg | 8900 | |
| Front/rear axle load, kg | 3100/6400 | |
| Wheelbase, mm | 4475 | |
| Aggregate characteristics | ||
| Chassis used | ISUZU NPR82LM | |
| Engine | Gas, ISUZU 4HV1, EURO-5 | |
| Number and arrangement of cylinders | 4, in-line | |
| Engine displacement, cm3 | 4570 | |
| Power hp / Torque, N/m | 130 /353 | |
| Gearbox | ISUZU-MYY6S, 6-speed manual | |
| Clutch | Single-disc, dry | |
| Front suspension | Dependent, leaf spring with hydraulic telescopic shock absorbers, with anti-roll bar | |
| Rear suspension | Dependent, leaf spring with hydraulic, telescopic shock absorbers, with anti-roll bar | |
| Steering | With hydraulic booster, "screw-ball nut-rack-sector" | |
| Brake system | Hydraulic, dual-circuit with division into circuits according to axles, with vacuum booster, with ABS and ESP. Brakes on all wheels - disc | |
| Tires | Pneumatic, radial, tubeless, all-season 215/75R17.5 | |
| Fuel tank capacity, l | 140 m³ (7 cylinders) | |
| Power supply system | 24V | |

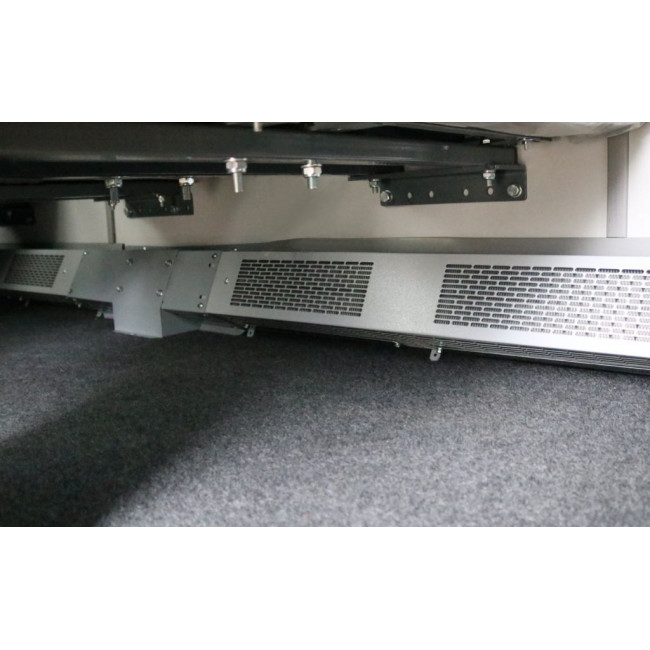

| Heating system | Passenger compartment heating system from an autonomous liquid heater, 4 convector-type cabin heaters and an additional heater for the driver's workspace | |
Basic Equipment
- ERA-GLONASS Emergency Response System
- Power and Heated Rearview Mirrors
- Car Radio with USB
- USB Ports Throughout the Cabin for Charging Mobile Devices
- Reverse Gear Buzzer
- Stop Signal Buttons
- Driver's Seat, Sprung or Air Suspension
- Steering Column with Tilt and Reach Adjustment
- Pre-Starting Heater-Heat and 4 Convector-Type Cabin Heaters
- Painted in Corporate Color (Not Metallic)
- Motor Brake
- ABS, ESP
- Anti-Roll Bars Front and rear axles

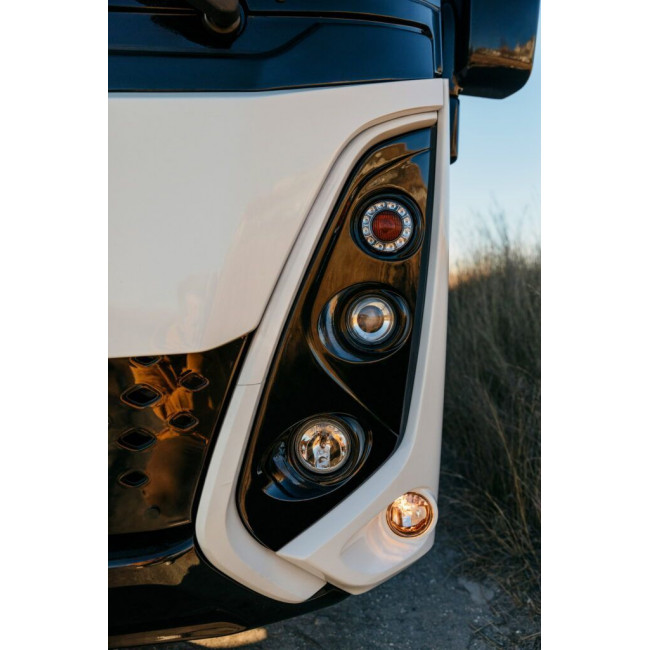

- Fog lights
- Two cabin hatches with adjustment in 3 planes
- Filter ventilation unit

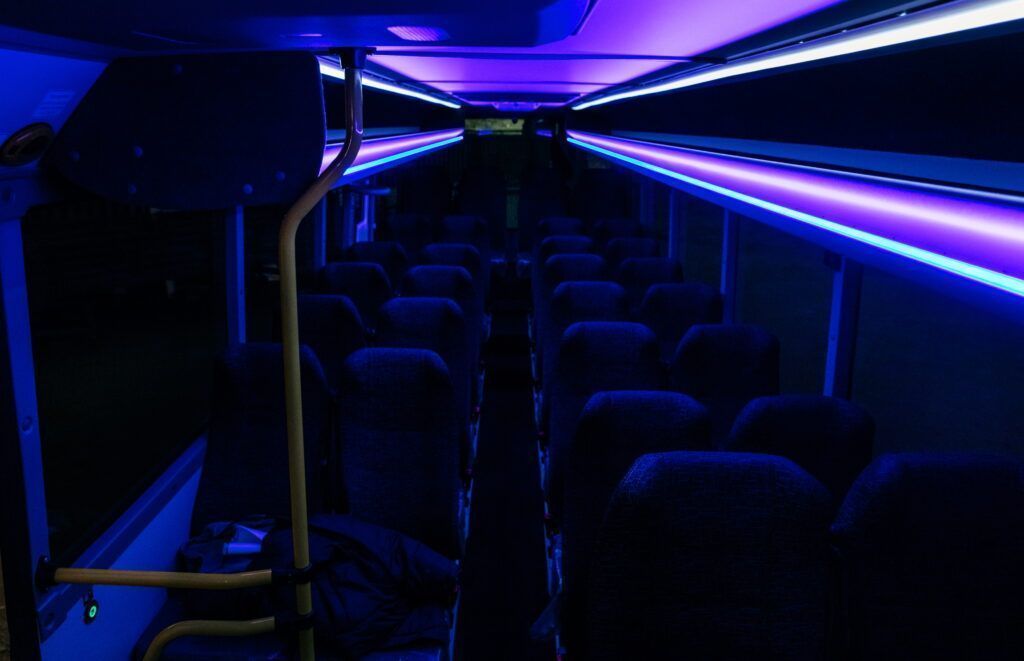

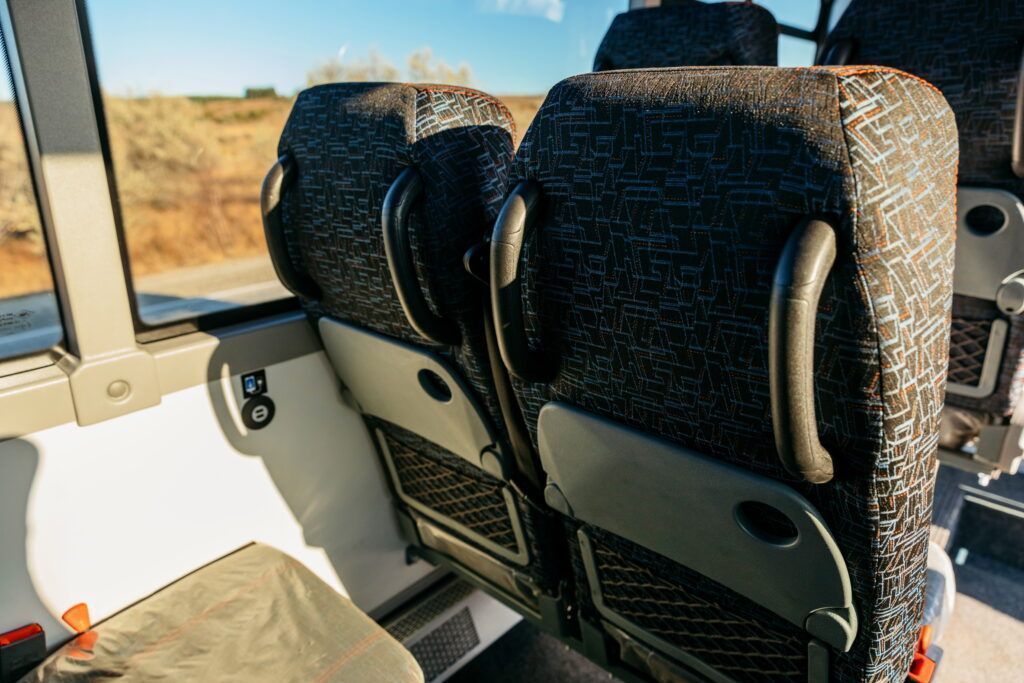

- Comfortable seats with a high back and 3-point seat belts, adjustable tilt
- Roof-mounted air conditioner
- Digital tachograph
- Electronic route indicators (information board)

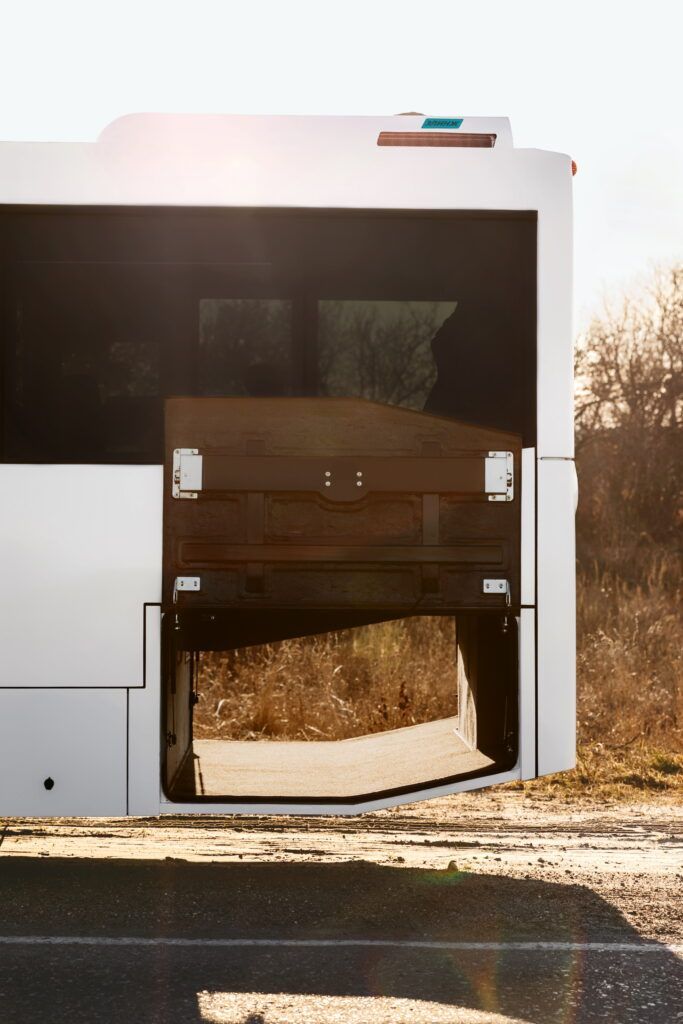

- Luggage racks with individual wiring of lighting and ventilation
- Multimedia system running Android OS (3 cabin cameras, rear view camera, 10" monitor)

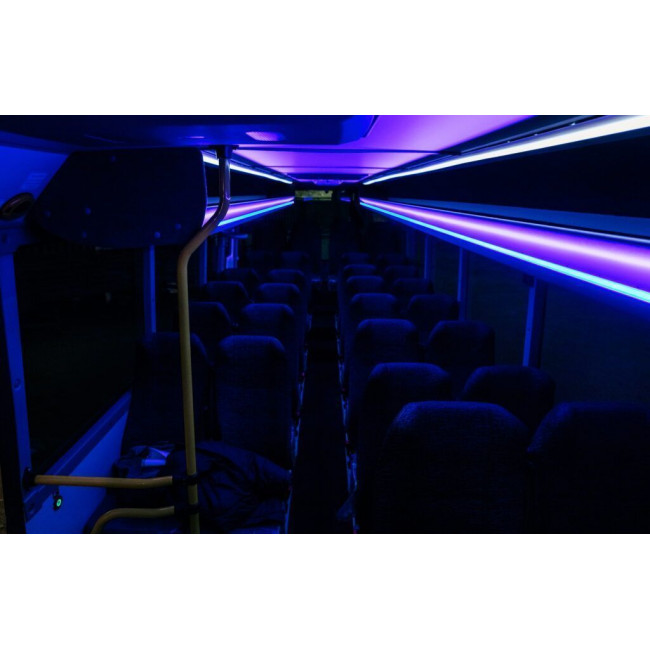

- Passenger seats of increased comfort
- Painted in metallic color
- Disinfector / Recirculator
- Monitor
Specifications Bus SIMAZ 2258-30 CNG, 130 hp
Equipment Specifications
| Engine power, hp | 130 |
|---|---|
| Wheelbase, mm | 4475 |
| Height, mm | 3322 |
| Length, mm | 8700 |
| Width, mm | 2234 |
| Engine | 4HV1 |
| Weight, kg | 8900 |
